| Recommended Dimmers | See spec sheet in downloads tab for recommended dimmers |
|---|---|
| Dimming | 0-10V (with high-voltage option only), ELV, TRIAC |
| Watts | 14W |
| Delivered Lumen | 1100lm |
| CRI | 90+ |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT |
| Lifetime | 50000H |

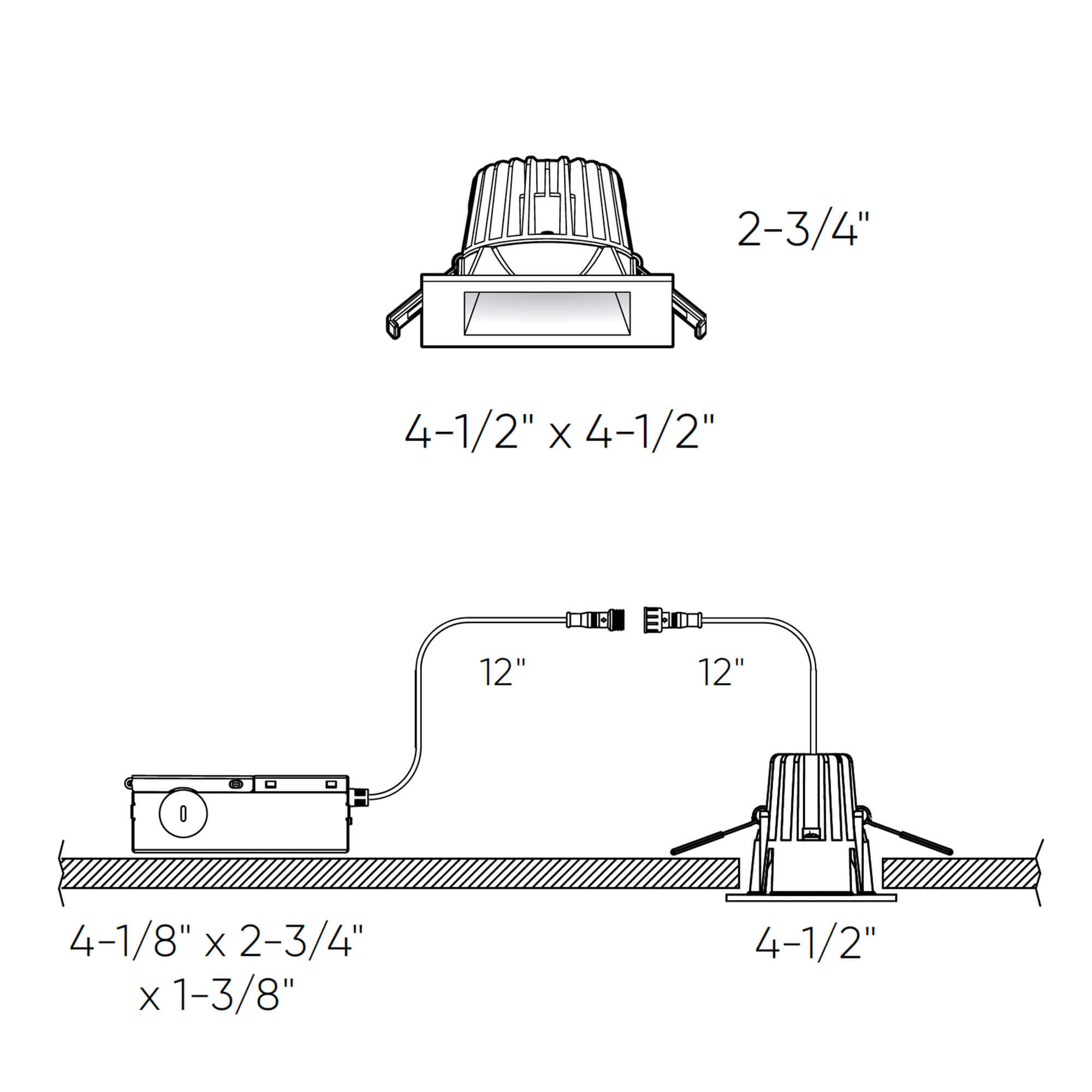

| Dimensions | 2,75'' 4,5'' 4,5'' |
| Cutout size | 4" x 4", Ø4-1⁄4" |
| Dimensions | 2.75" x 4.5" x 4.5" |
| Lifetime | 50000H |

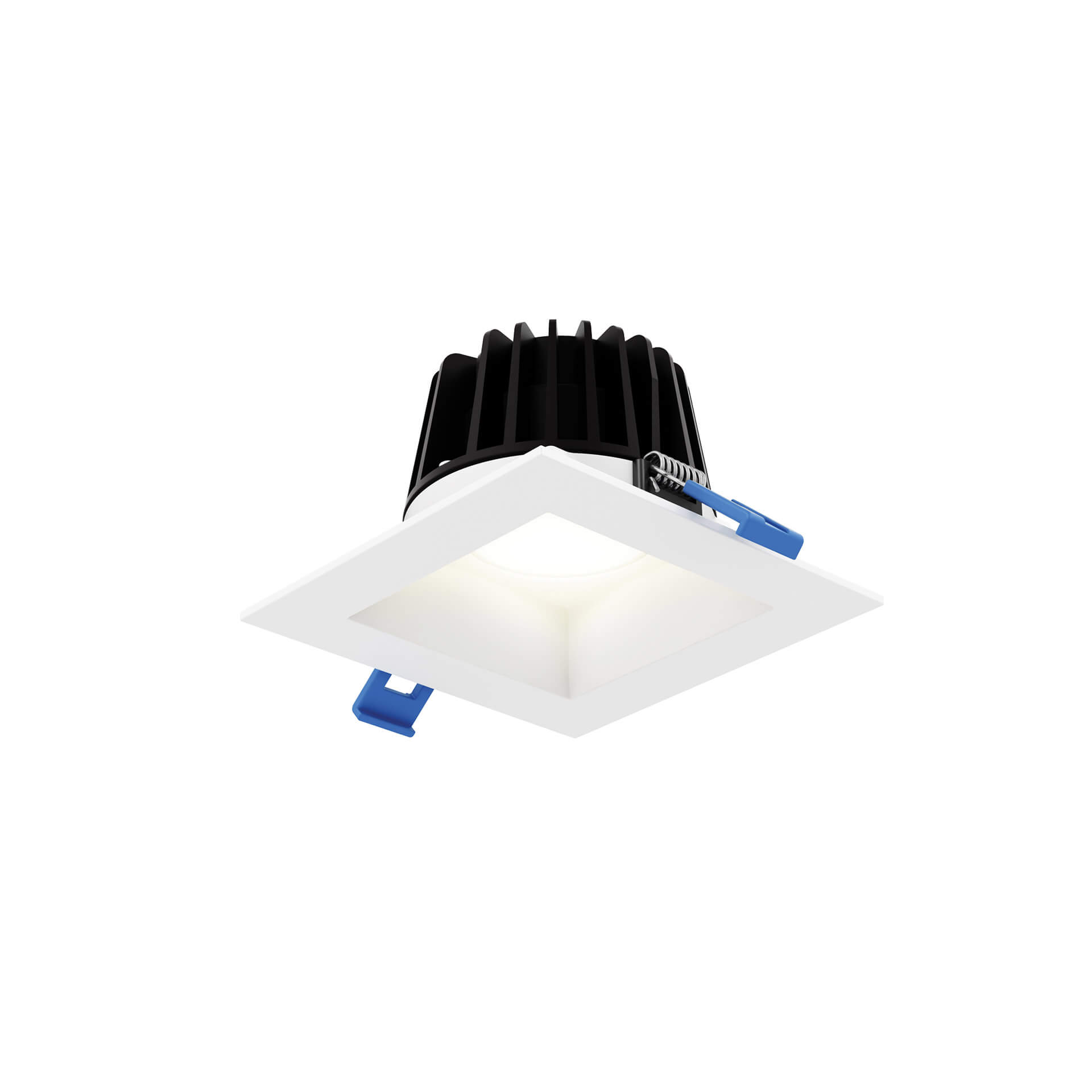

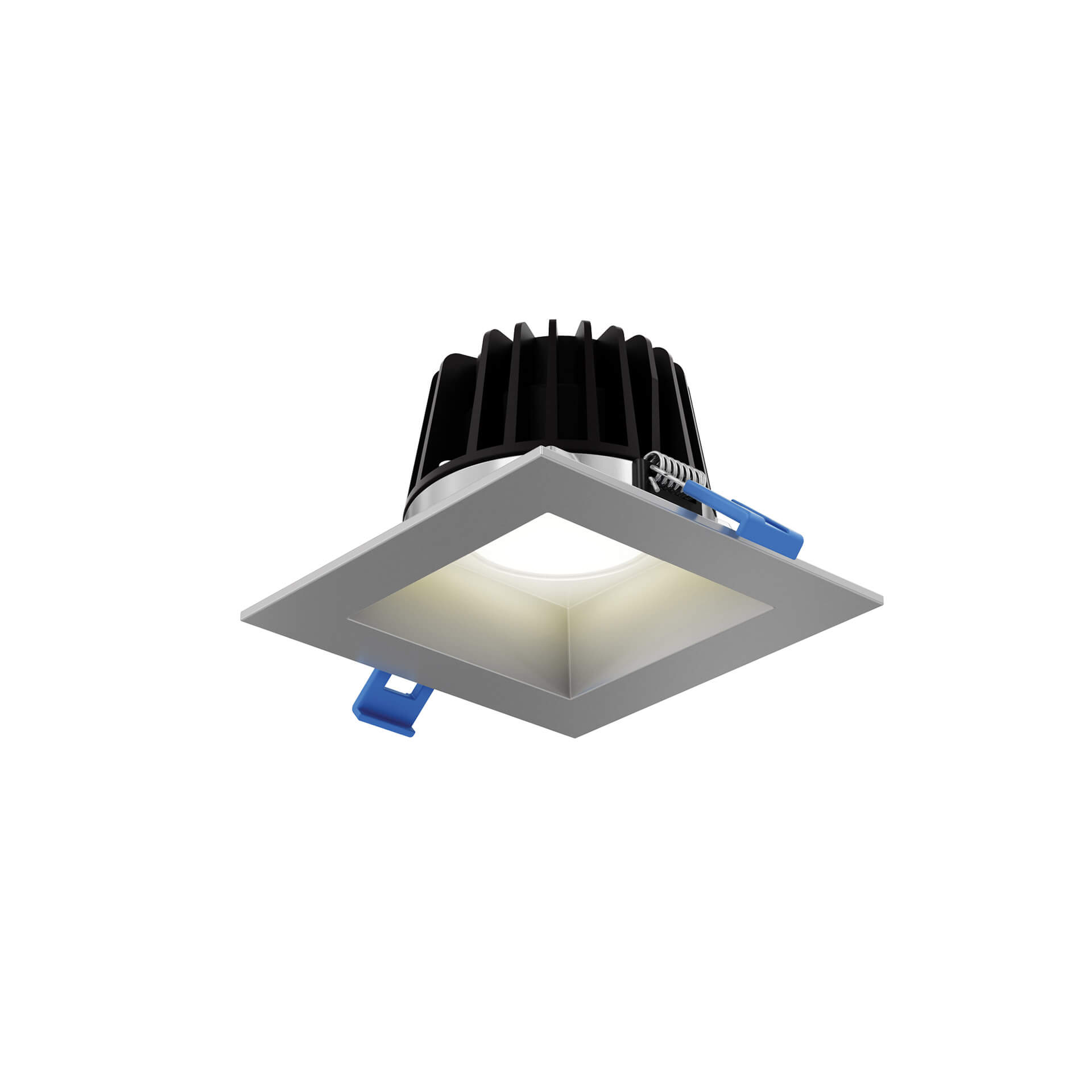

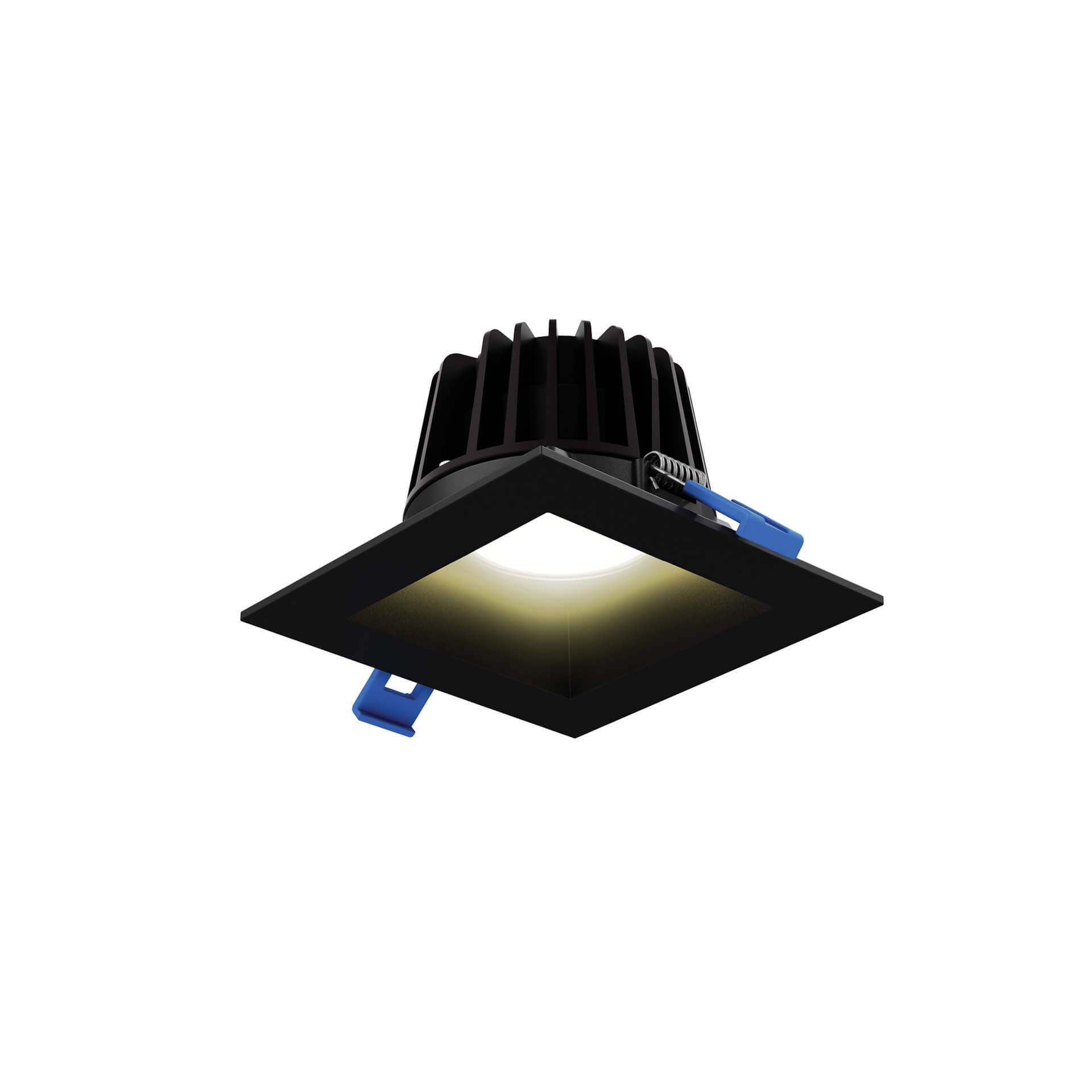

RGR4SQ-CC – 4″ square regressed downlight
RGR4SQ-CC – 4″ square regressed downlight
FAMILY : RGR Square
When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.
VOLTAGE
Standard 120 V - Stock item
- Multi-voltage 120/277/347V - Stock item
CERTIFICATIONS
FEATURES
- Every fixture includes a junction box with integrated dimmable driver
- Can be daisy chained
- Superior LED performance and lifespan
- Regressed light source
- Minimal heat emission
- Aluminum construction
- Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
- IC certification (suitable for direct contact with insulation)
- Air-tight certified as per ASTM E283-04
- 40° beam angle
- Suitable for wet locations
- JA8 certified
- Ideal operating temperature: -20° to 40° C
- FT6 rated cable
- 5-year warranty
