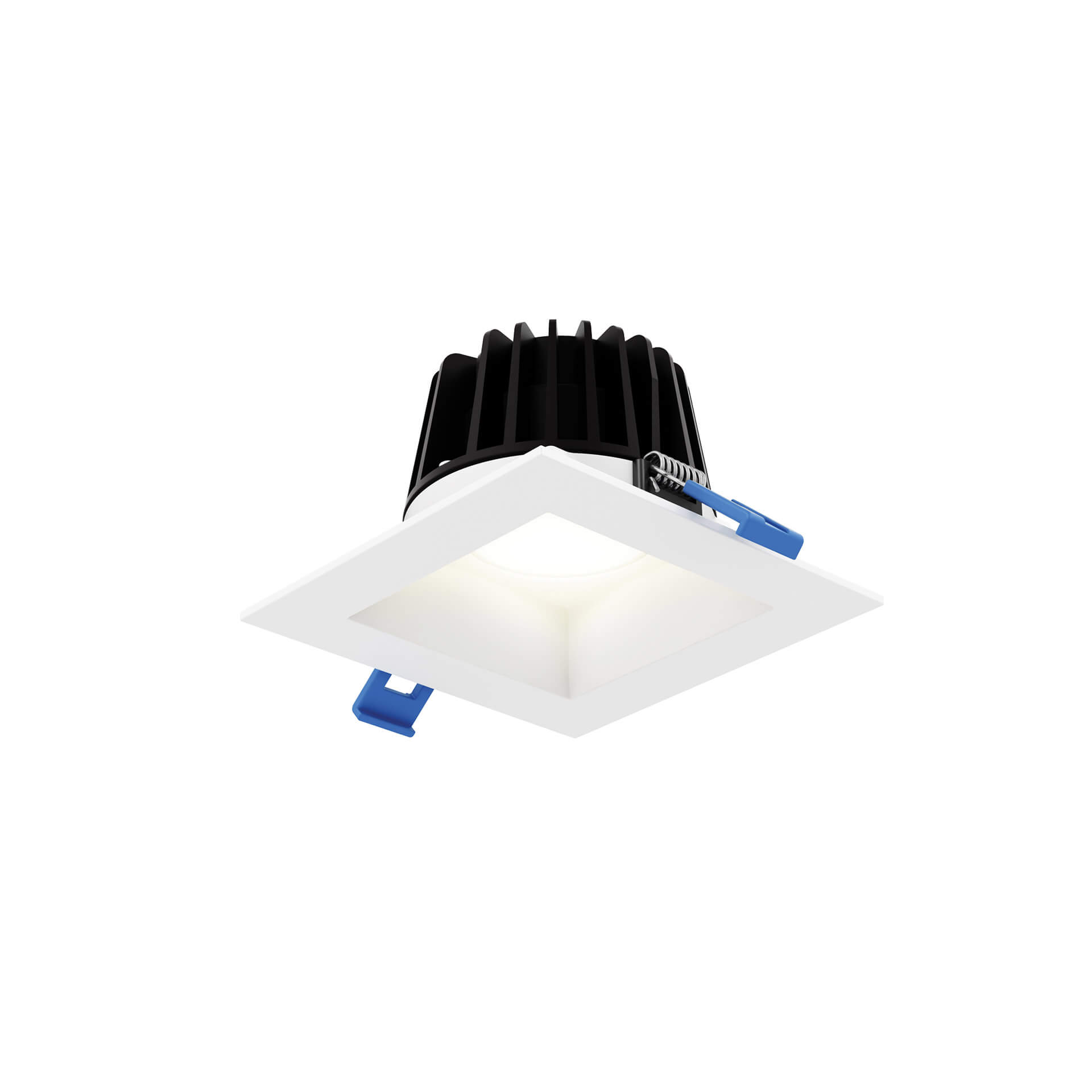

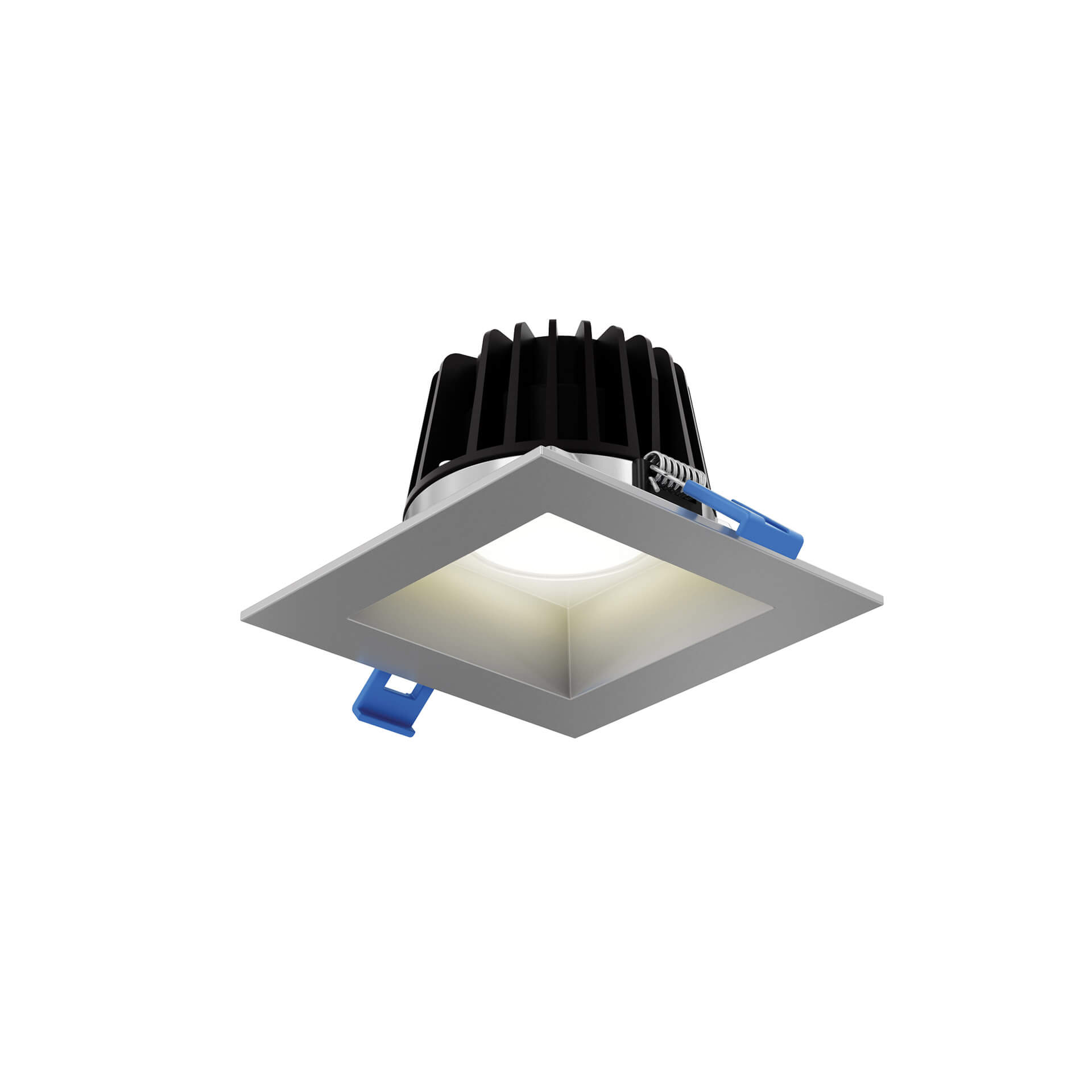

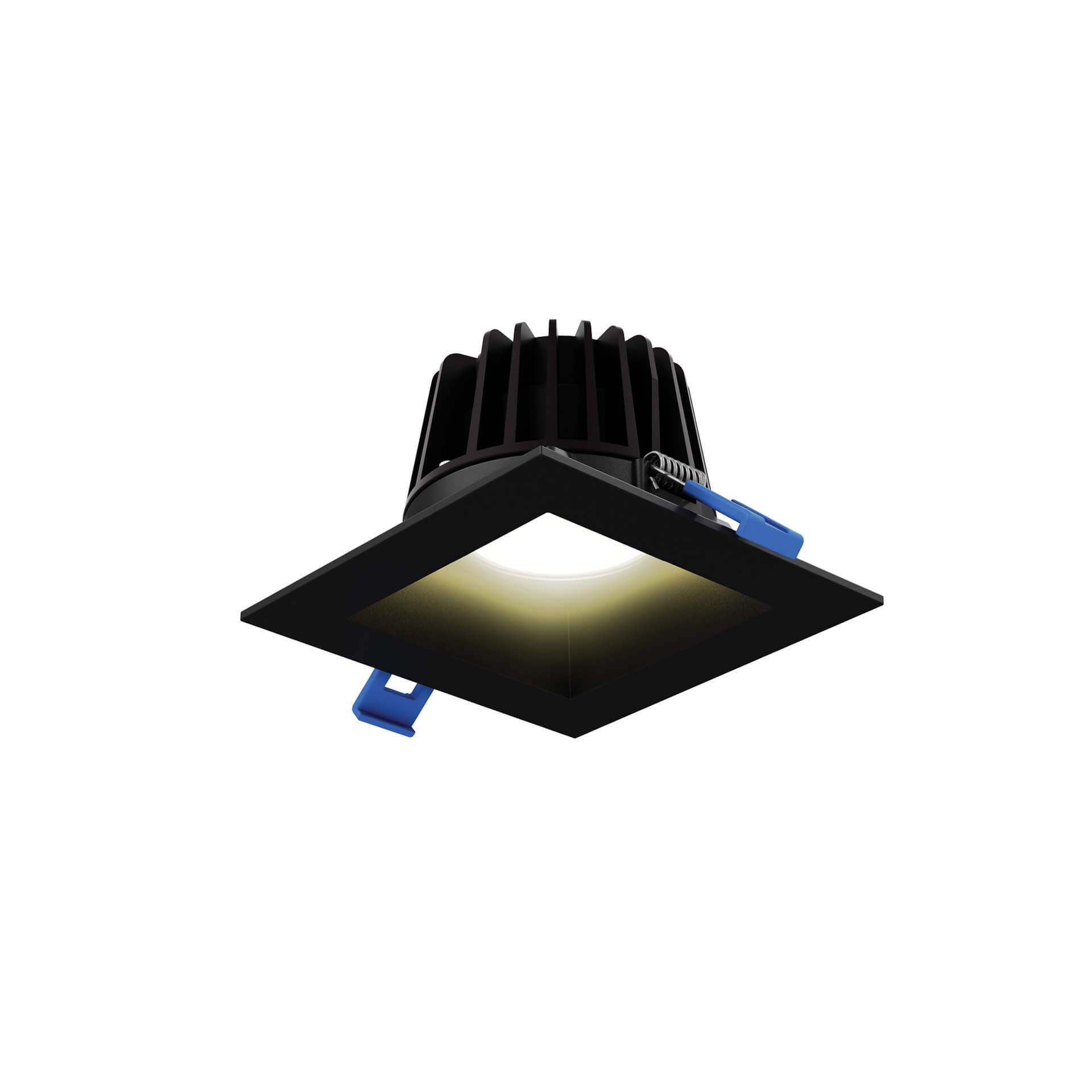

RGR4SQ-CC – 4″ square regressed downlight

RGR4SQ-CC – 4″ square regressed downlight

Model : RGR4SQ-CC Categories , , , ,

FAMILY : RGR Square

When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.

VOLTAGE

  • Voltages standard120vStandard 120 V - Stock item
  • Voltages universal120vstockMulti-voltage 120/277/347V - Stock item

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications wet
  • Certifications air-tight
  • Certifications t24-ja8
  • Certifications ic-rated
  • Certifications etl-certified

FEATURES

  • features 5cct-color-select
  • features dimmable
  • features low-glare
  • features multi-voltage
Standard Dimming

0-10V (with high-voltage option only), ELV, TRIAC

Watts

14W

Delivered Lumen

1100lm

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

Lifetime

50000H

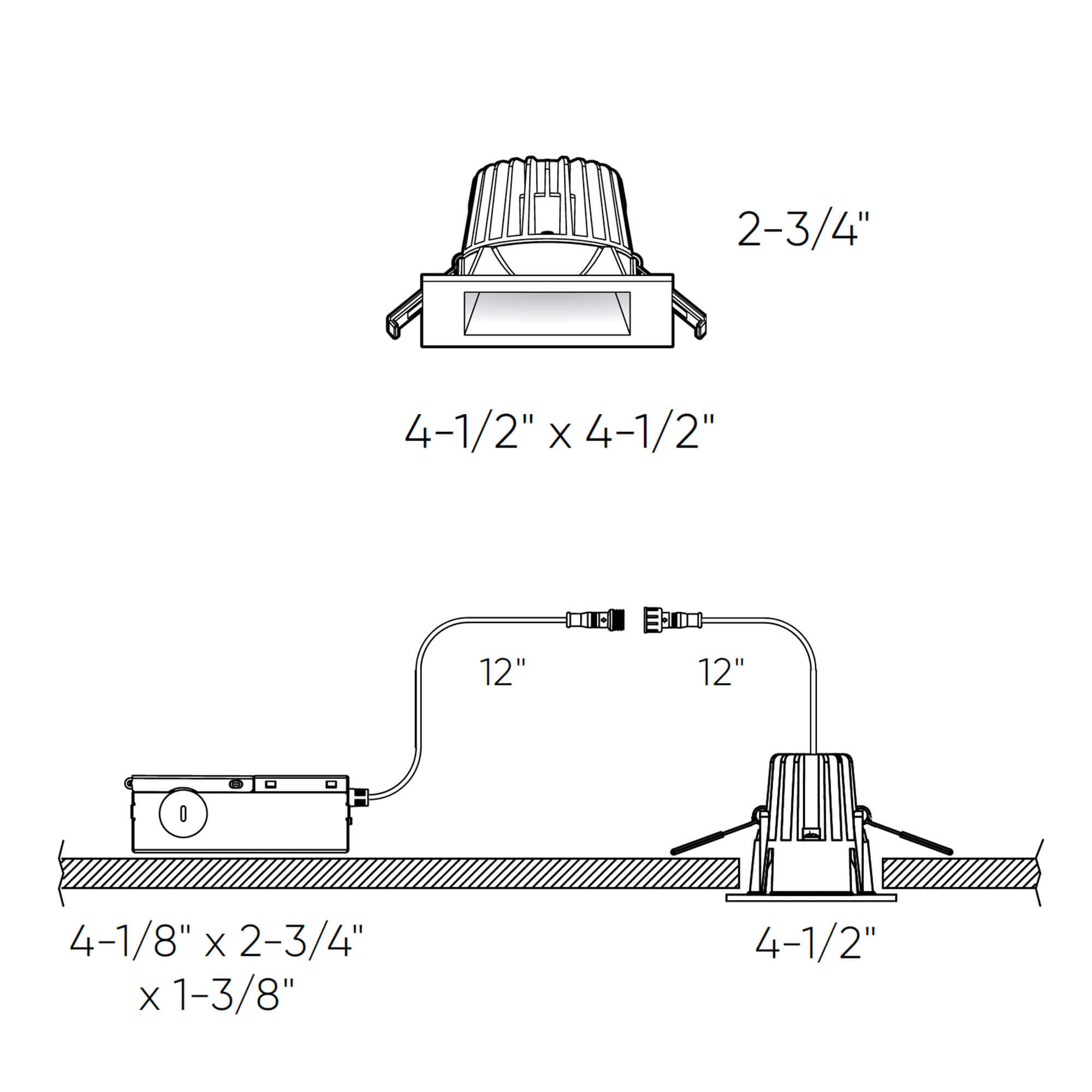

Dimensions

2,75'' 4,5'' 4,5''

Cutout size

4" x 4", Ø4-1⁄4"

Dimensions

2.75" x 4.5" x 4.5"

Lifetime

50000H

  • Every fixture includes a junction box with integrated dimmable driver
  • Can be daisy chained
  • Superior LED performance and lifespan
  • Regressed light source
  • Minimal heat emission
  • Aluminum construction
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • 40° beam angle
  • Suitable for wet locations
  • JA8 certified
  • Ideal operating temperature: -20° to 40° C
  • FT6 rated cable
  • 5-year warranty
