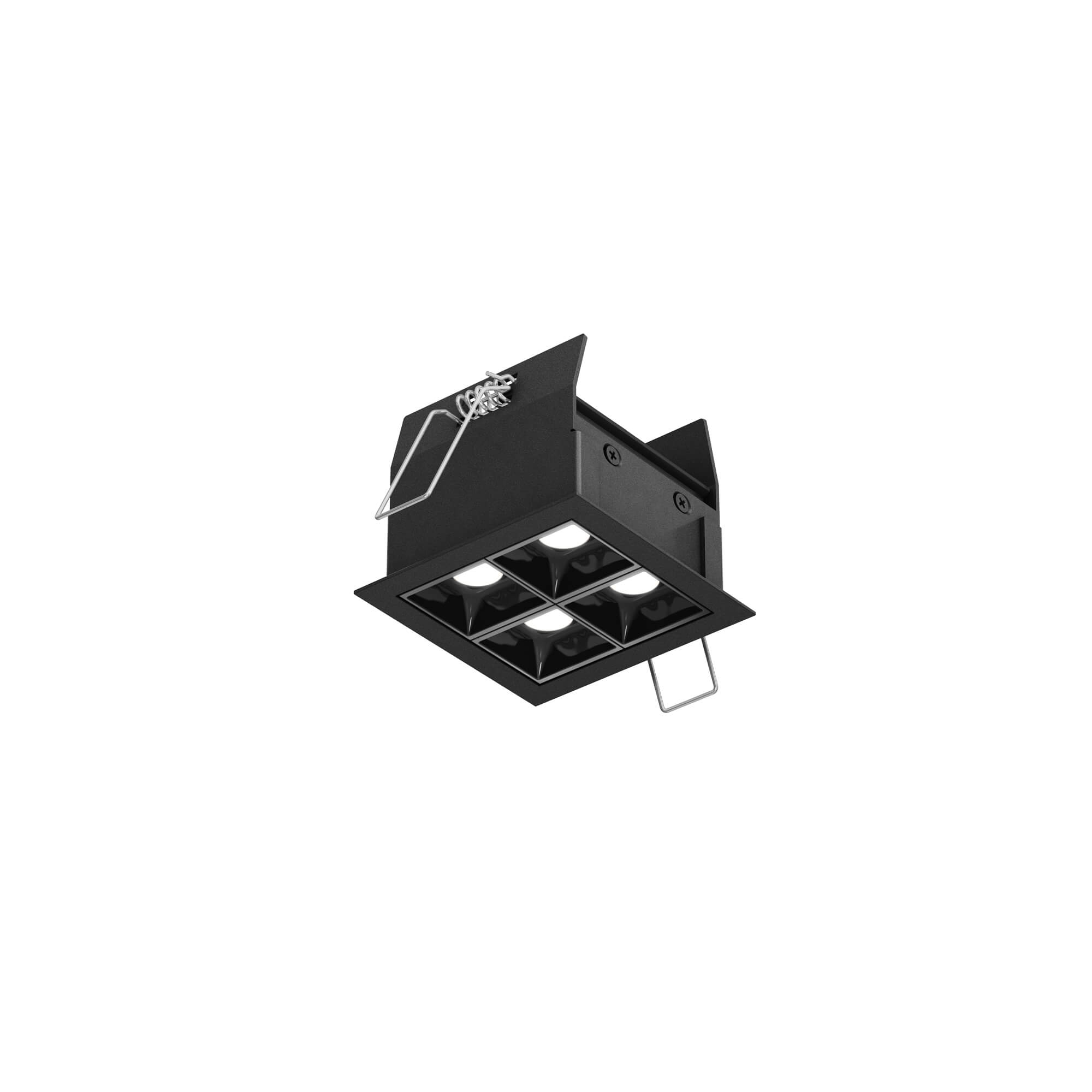

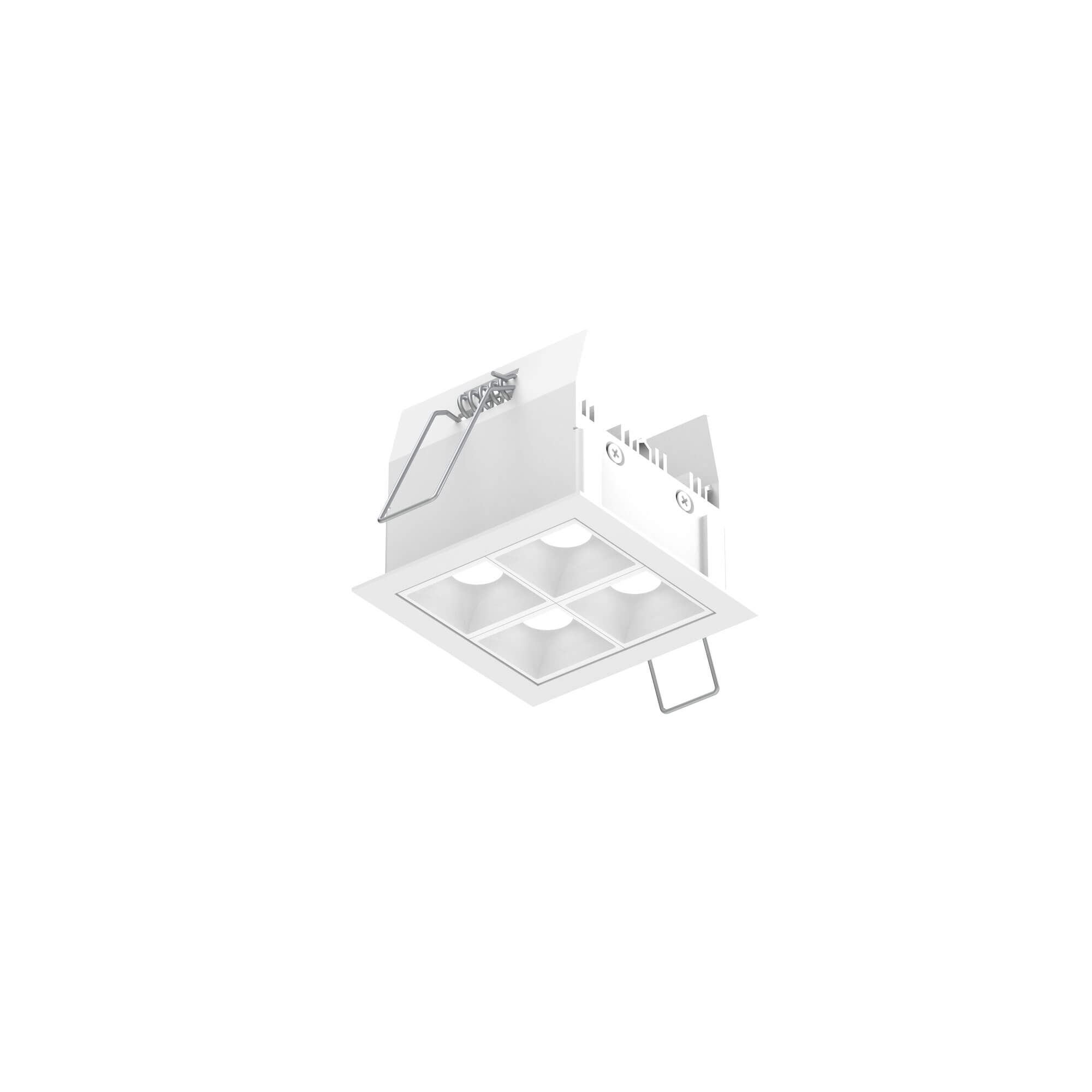

MSL4-CC – Multi-spot recessed downlight

MSL4-CC – Multi-spot recessed downlight

Model : MSL4-CC Categories , , , ,

FAMILY : Pinpoint Series

Providing a contemporary and functional style to any space, the MSL recessed series is available in various styles & features. Framed by a powder-coated finish, these high-output fixtures provide a crisp, low-glare emission. Available with pivoting multi-directional optics or a traditional fixed downlight.

VOLTAGE

  • Voltages standard120vStandard 120 V - Stock item
  • Voltages universal120vorderMulti-voltage 120/277/347V - Not currently stocked, inquire for lead time and MOQ

CERTIFICATIONS

  • Certifications indoor
  • Certifications ic-rated
  • Certifications etl-certified
  • Certifications dry

FEATURES

  • features 5cct-color-select
  • features dimmable
  • features low-glare
Watts

12W

Delivered Lumen

600lm

Delivered Lumen

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

IP Rating

IP44

Standard Dimming

ELV, TRIAC

Cutout size

2-3/4" x 2-3/4"

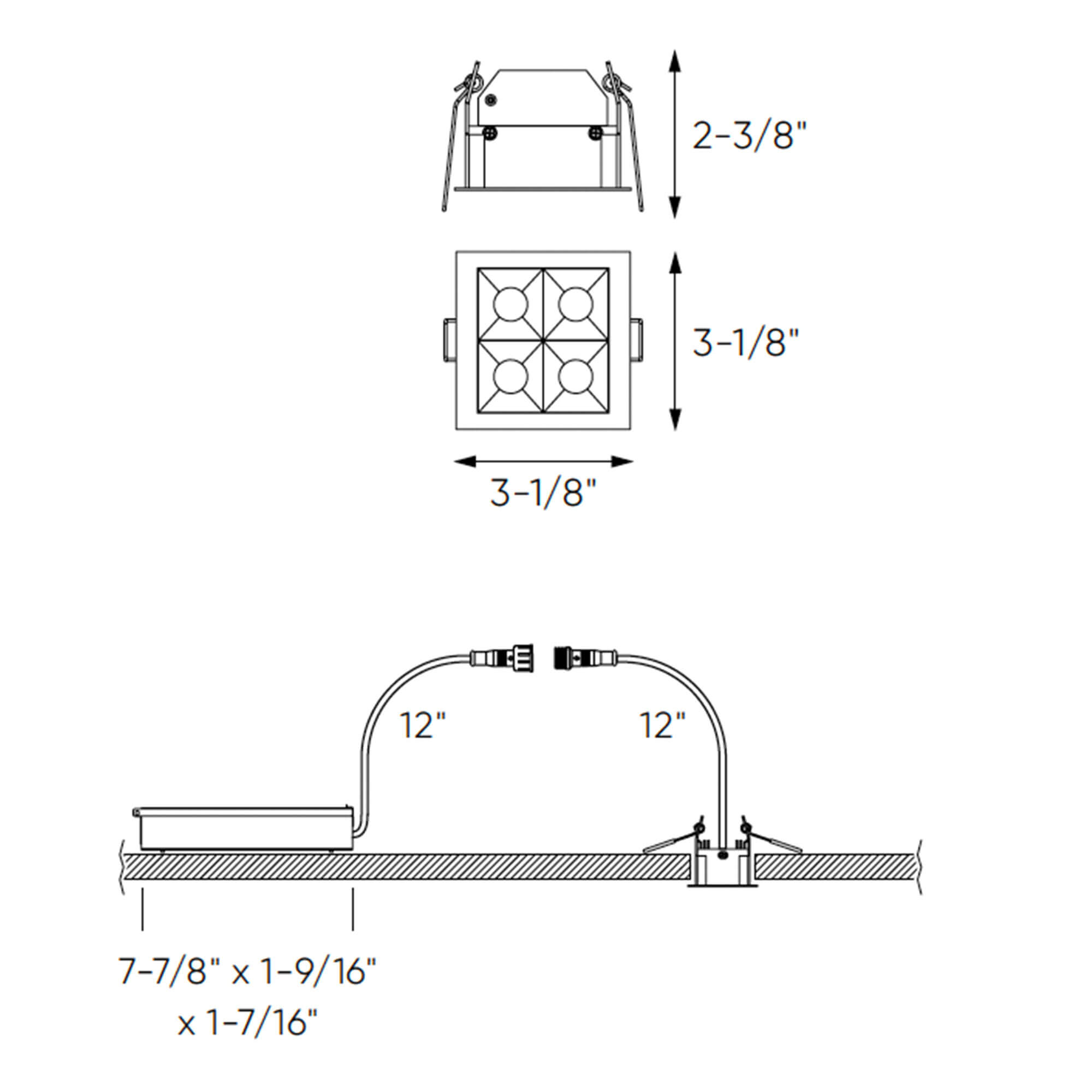

Dimensions

3-1/8" x 3-1/8" x 2-3/8"

Lifetime

50000H

  • Every fixture includes a junction box with integrated dimmable driver
  • Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
  • Can be daisy chained
  • Superior LED performance and lifespan
  • Regressed light source
  • 30° beam angle
  • Minimal heat emission
  • Aluminum construction
  • IC rated
  • Low-glare
  • Suitable for dry locations
  • FT6 rated cable
  • 5-year warranty
