| Recommended Dimmers | See spec sheet in downloads tab for recommended dimmers |
|---|---|
| Watts | 24W |
| Delivered Lumen | 1740lm |
| Delivered Lumen | |
| CRI | 90+ |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT |
| Standard Dimming | ELV, TRIAC |

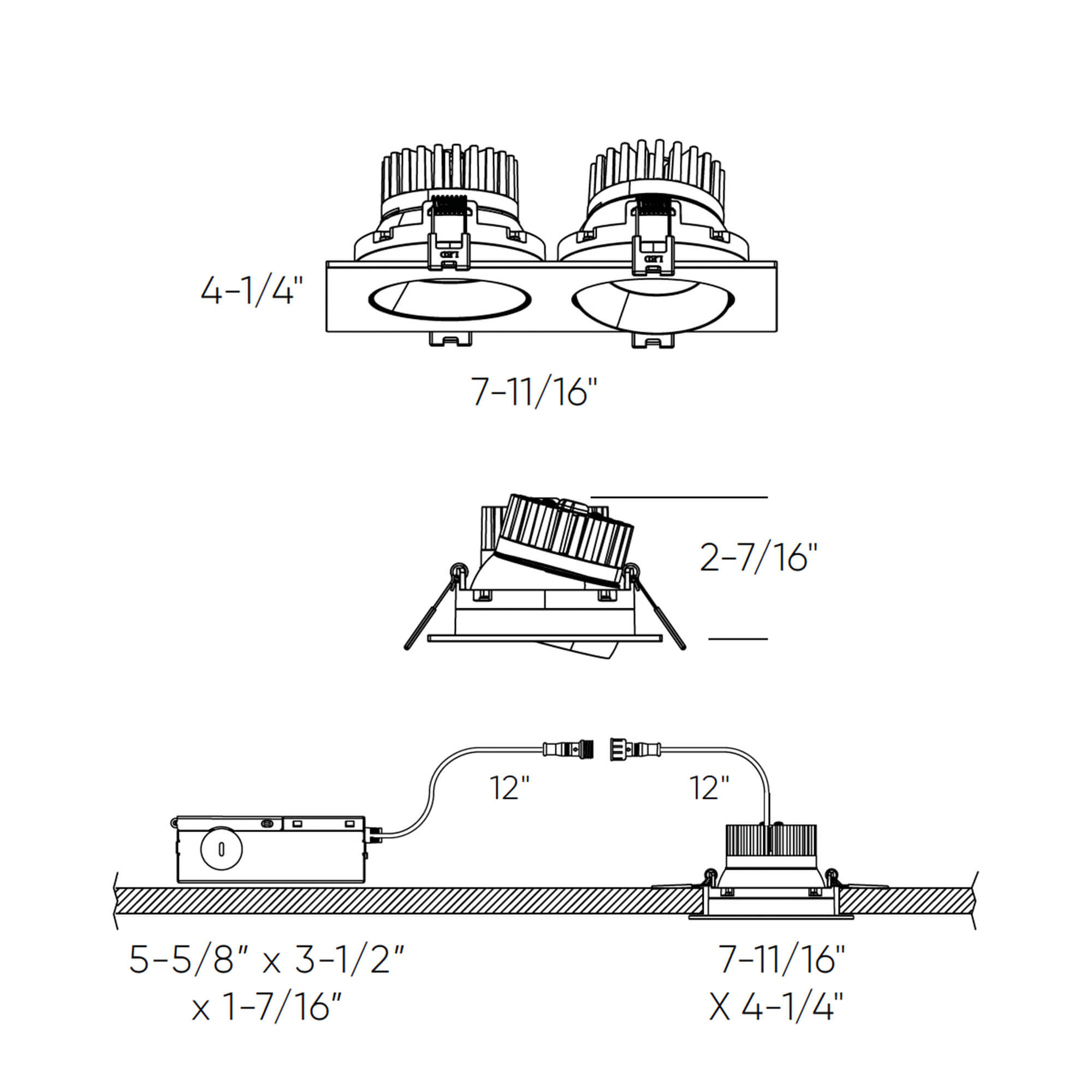

| Cutout size | 7-1/8" x 3-1/2" |
| Dimensions | 7-11/16" x 4-1/4" |
| Lifetime | 50000H |

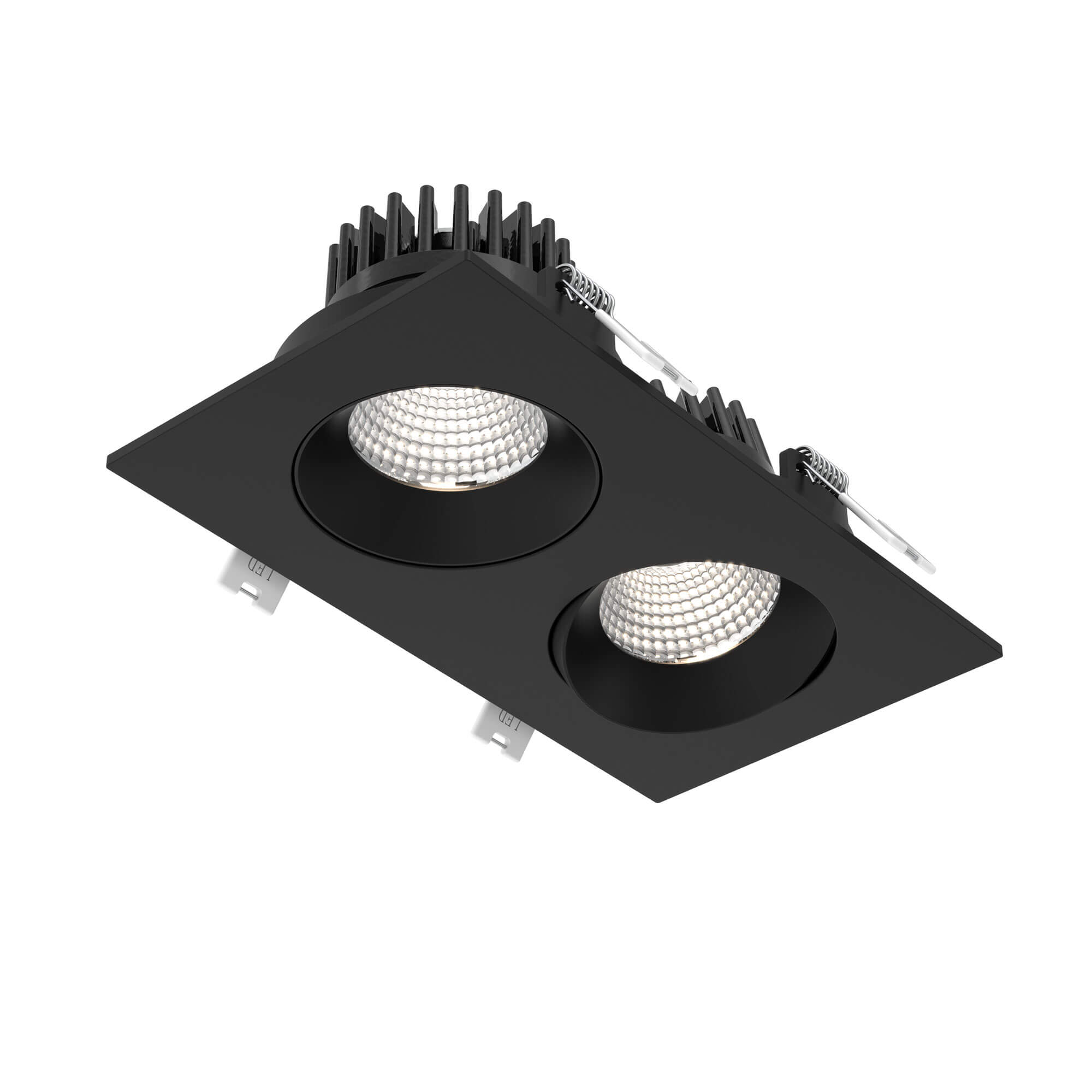

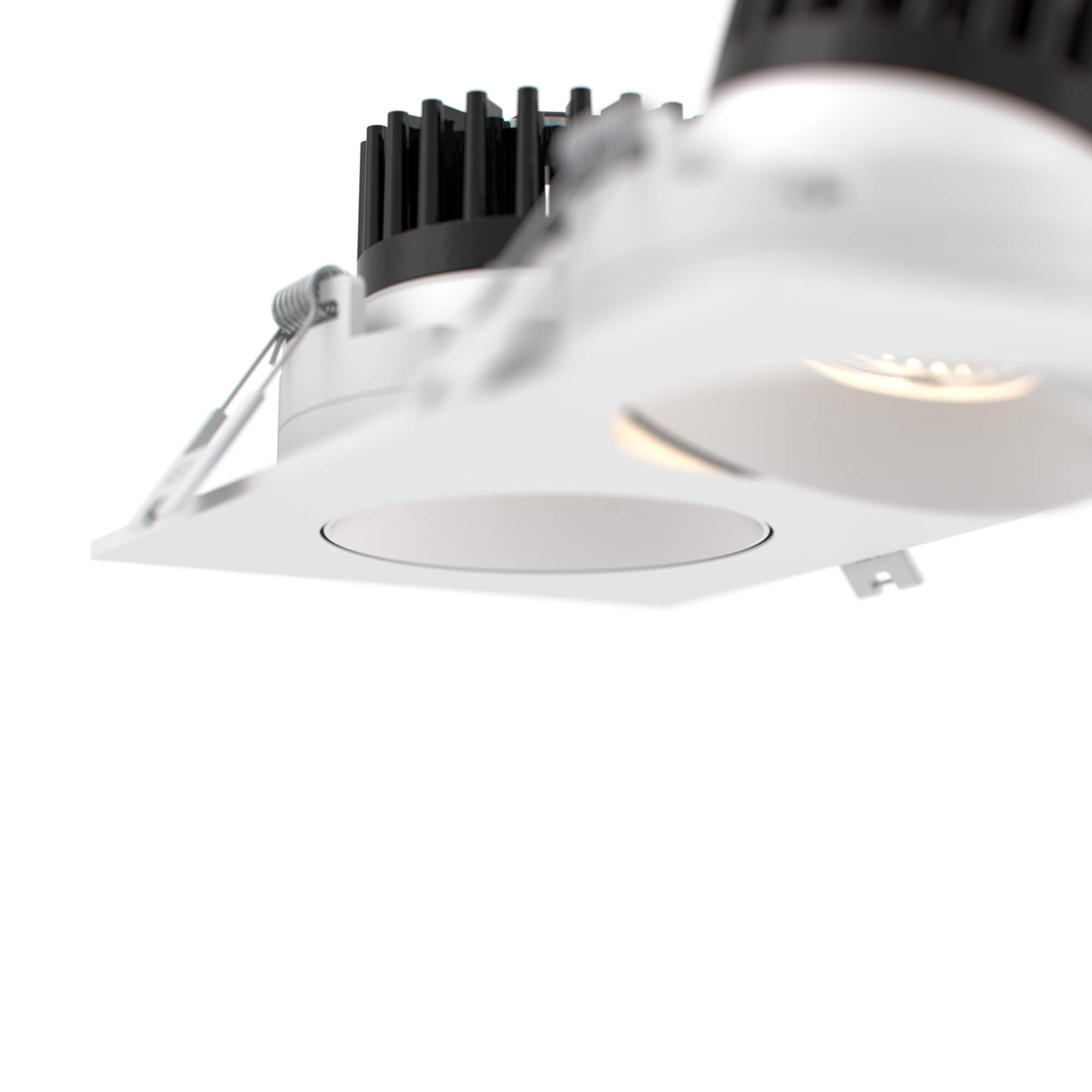

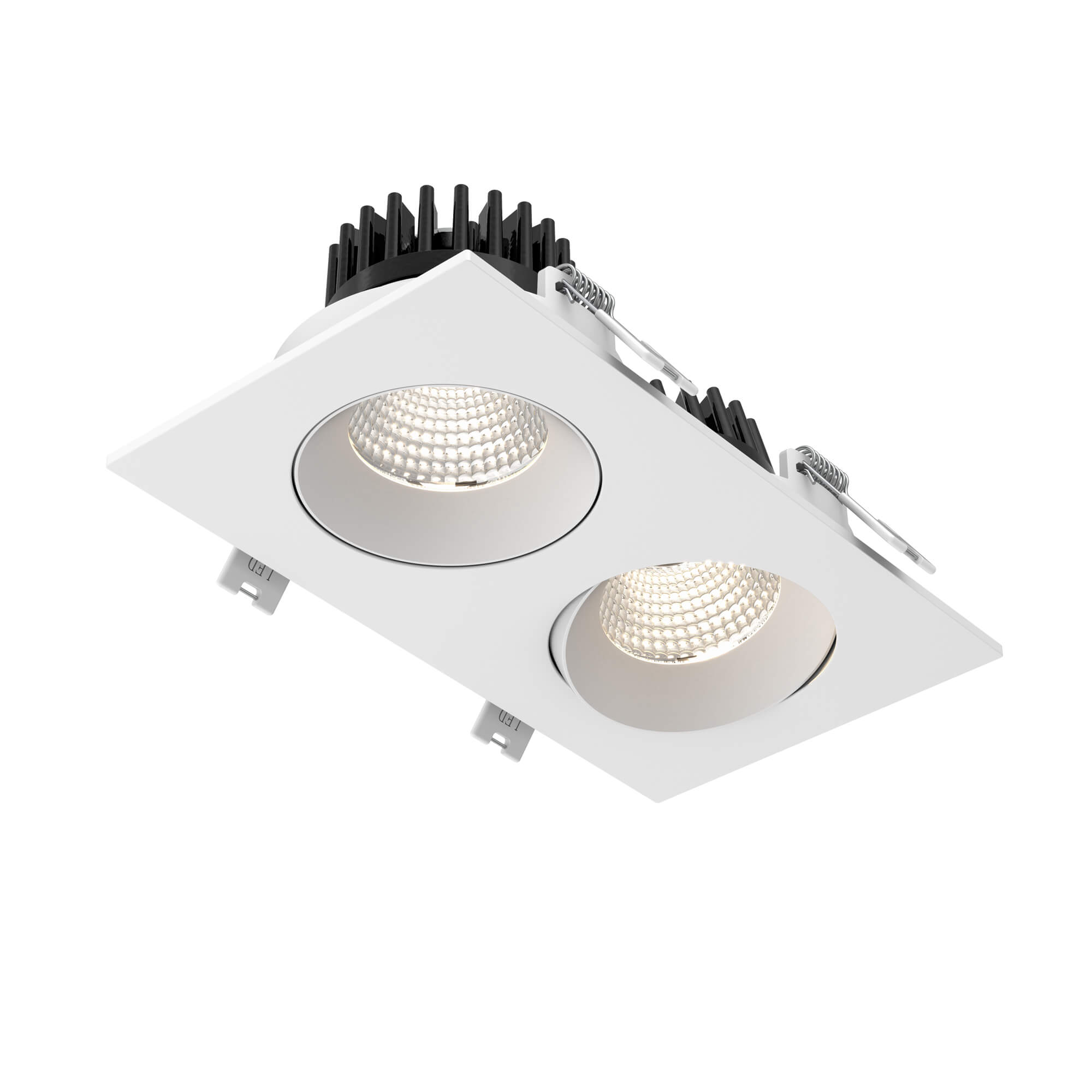

GBR35-CC-DUO – Double 3.5″ Regressed Gimbal Downlight
GBR35-CC-DUO – Double 3.5″ Regressed Gimbal Downlight
FAMILY : Revolve Duo
Our Recessed family has grown with a new range of adjustable downlights. The effortless design and high functionality of these fixtures are sure to make a welcome addition in any room.
VOLTAGE
Standard 120 V - Stock item
Multi-voltage 120/277/347V - Not currently stocked, inquire for lead time and MOQ
CERTIFICATIONS
FEATURES
- Includes a junction box with integrated dimmable driver
- Can be daisy chained
- Superior LED performance and lifespan
- 30° tilting, 360° rotation
- Minimal heat emission
- Aluminum construction
- Switch-selectable CCT: 2700K/3000K/3500 K/4000 K/5000 K
- Low profile
- 40° beam spread
- IC certification (suitable for direct contact with insulation)
- Air-tight certified as per ASTM E283-04
- Suitable for wet locations
- Ideal operating temperature: -20° to 40° C
- 5-year warranty
