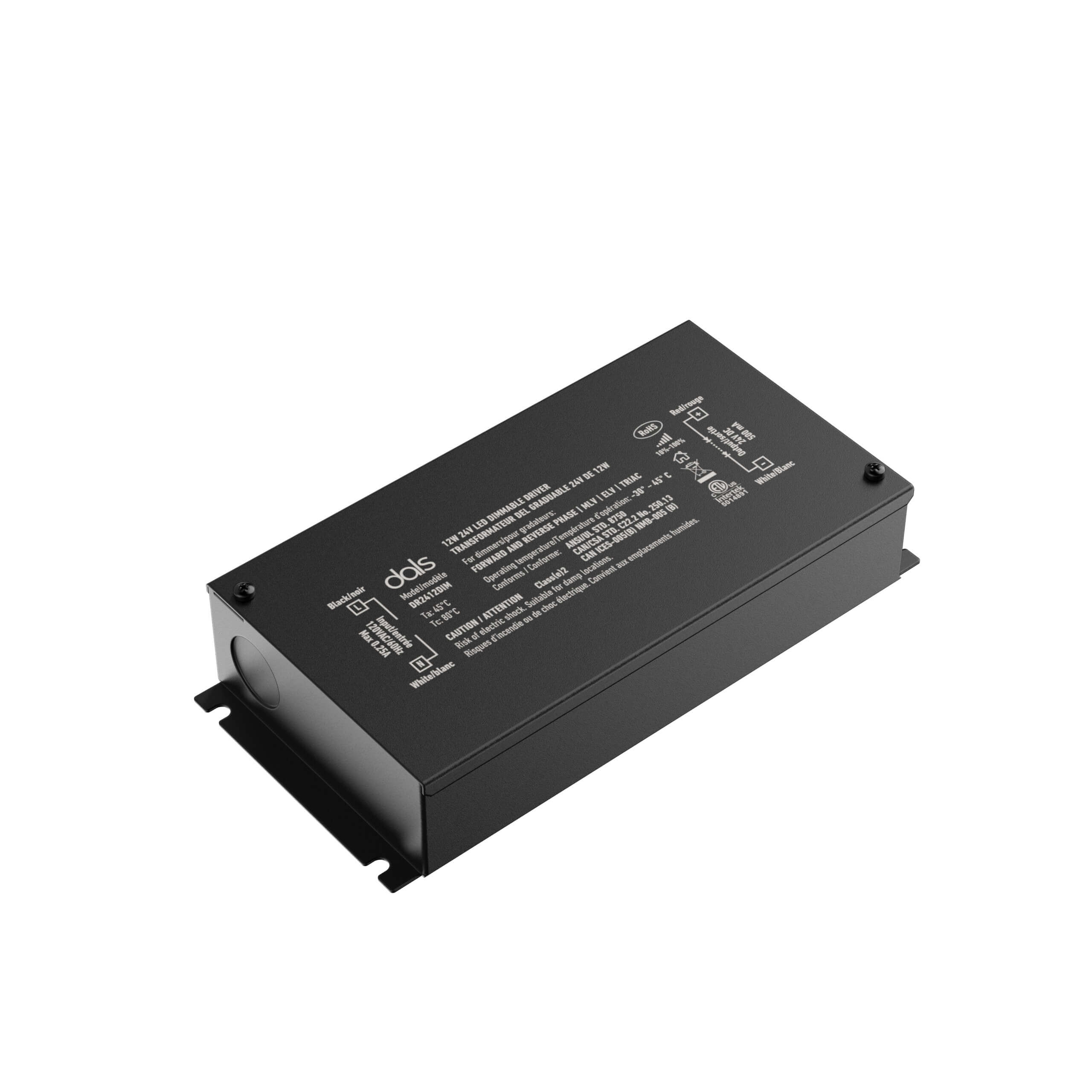

12W 24V hardwire driver

12W 24V hardwire driver

Model : DR2412DIM Categories , ,
Family : Driver

Power your LED lighting with precision and reliability using our 12W 24V DC Dimmable LED Hardwire Driver. Engineered in constant voltage mode, this compact power supply is ideal for low-voltage LED applications that require smooth, flicker-free dimming via TRIAC or ELV dimmers. Designed for hardwire installations, the unit features an integrated junction box for easy and secure setup. This driver includes built-in protections against short circuits and over-voltage, ensuring safe and long-lasting performance. With optimal dimming performance achieved at 50% or more of the total load, it offers versatility for a wide range of residential or commercial applications.

FEATURES

  • features dimmable

CERTIFICATIONS

  • Certifications indoor
  • Certifications damp
  • Certifications ic-rated
  • Certifications etl-certified
Watts

12W

Input Voltage

120V

Standard Dimming

ELV, TRIAC

Output Voltage

24 VDC

  • Constant voltage mode power supply
  • AC-dimming supply (with TRIAC or ELV dimmer)
  • Protection: short circuit / Over voltage
  • Integrated junction box for hard-wire installation
  • Fully isolated metal case
  • Cooling by air convection
  • Optimal dimming when used at 50% or more of total load
  • Load Range: 50% to 100%
  • 5-year warranty
