| Dimensions | 6'' |
|---|---|
| Recommended Dimmers | See spec sheet in downloads tab for recommended dimmers |
| Format | Square |
| Standard Dimming | ELV, TRIAC |
| Watts | 20W |
| Delivered Lumen | 1600lm |
| Delivered Lumen | |
| CRI | 90 |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT |
| Lifetime | 50000H |

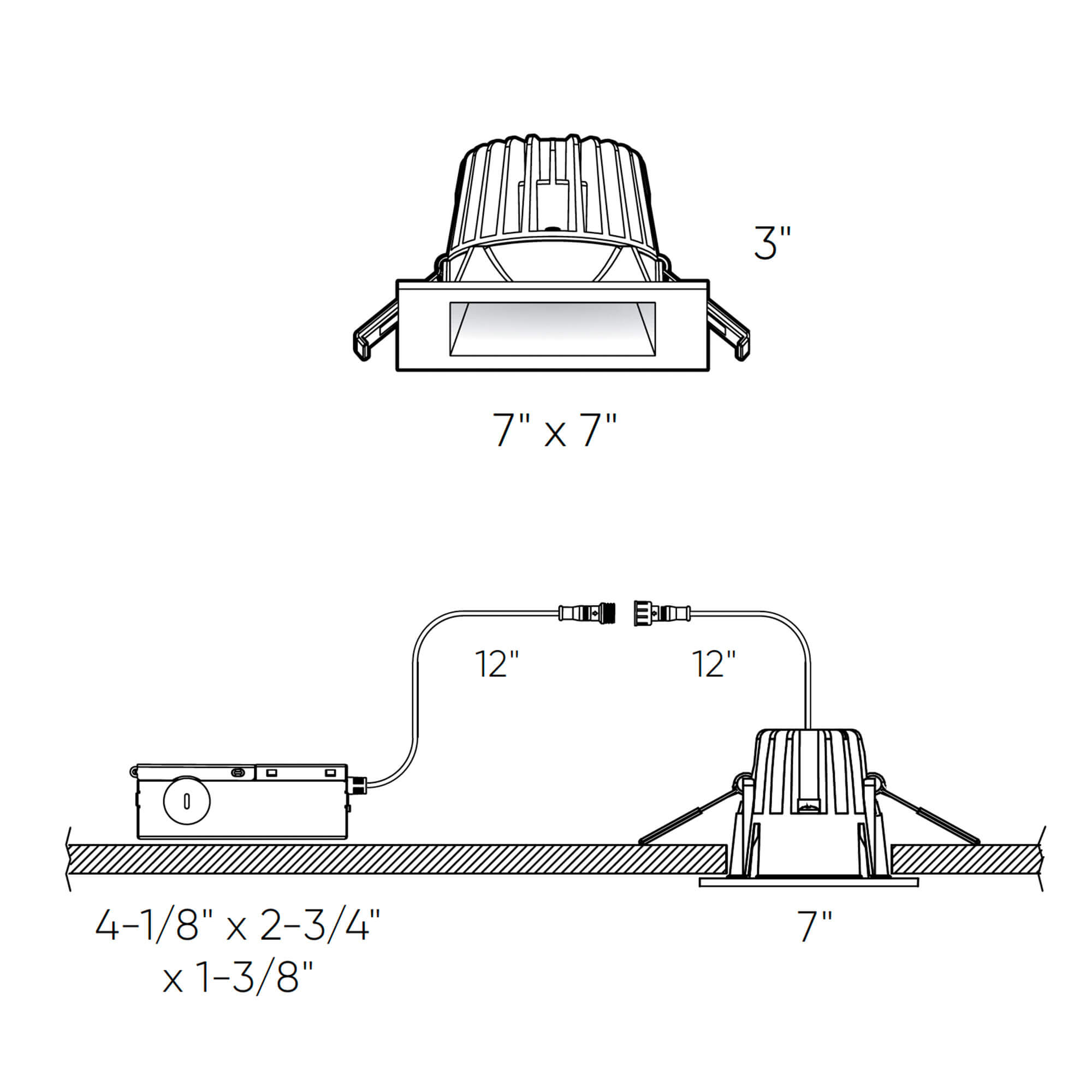

| Dimensions | 3'' 7'' 7'' |
| Cutout size | Ø6-1/2" |
| Product dimensions | 3" x 7" x 7" |
| Lifetime | 50000H |

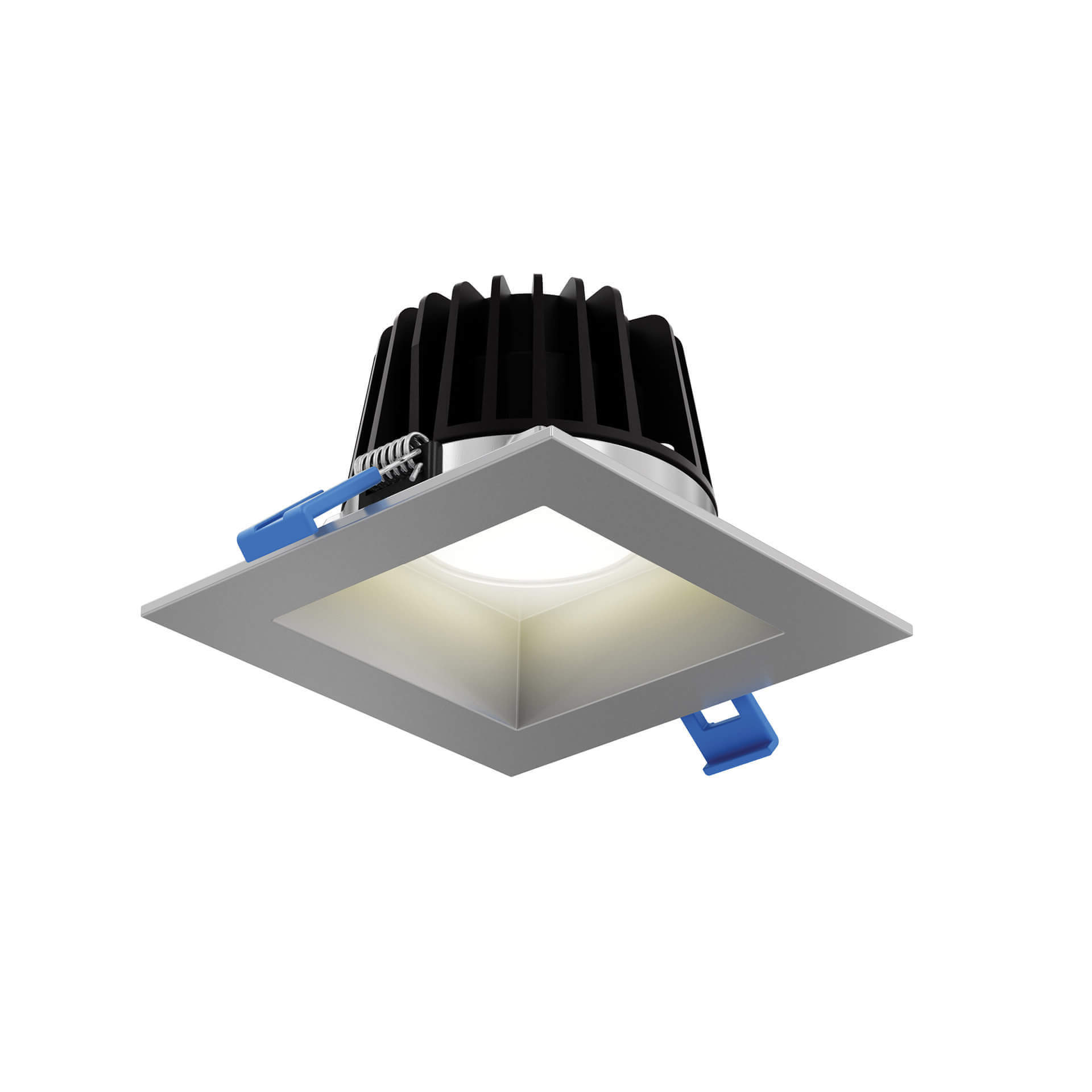

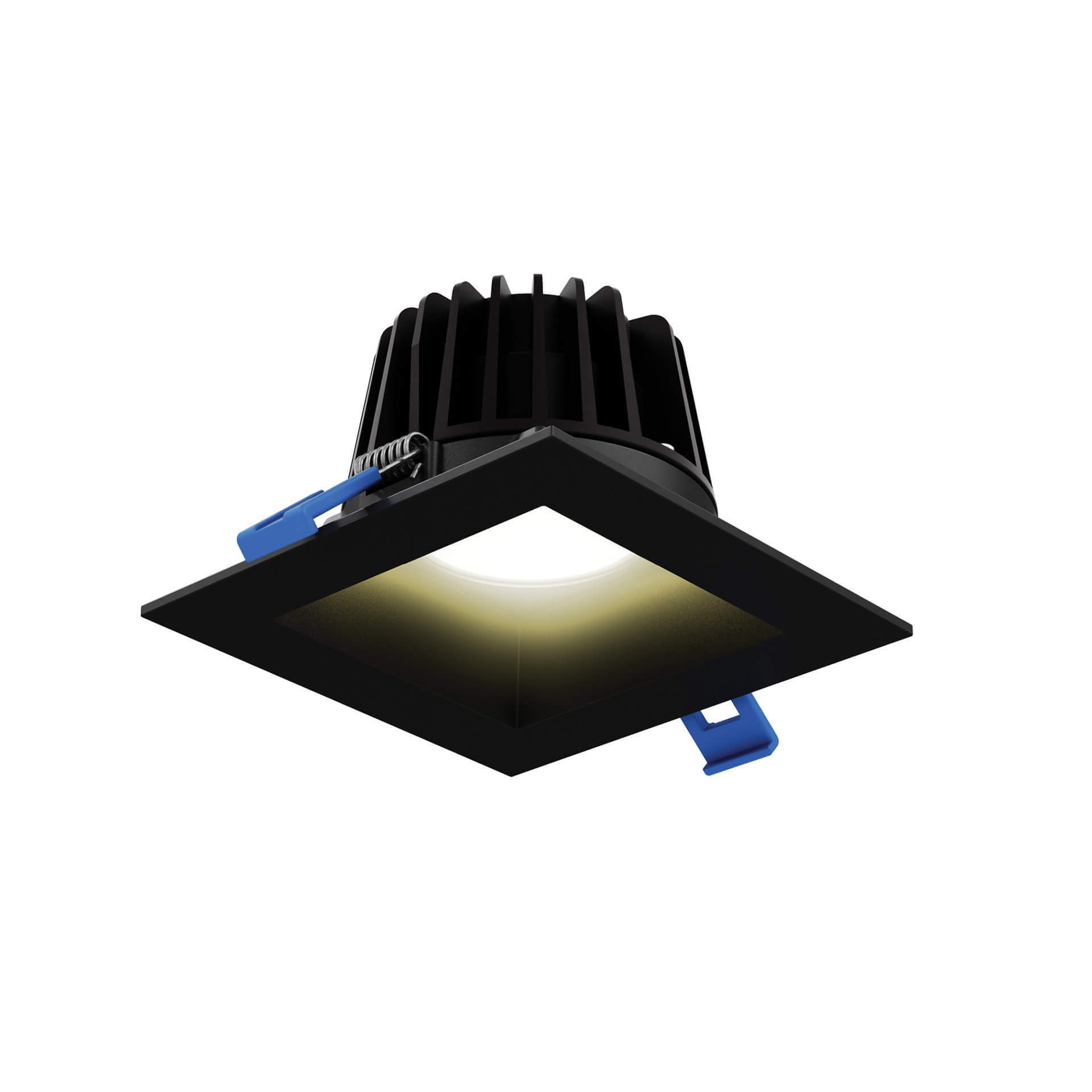

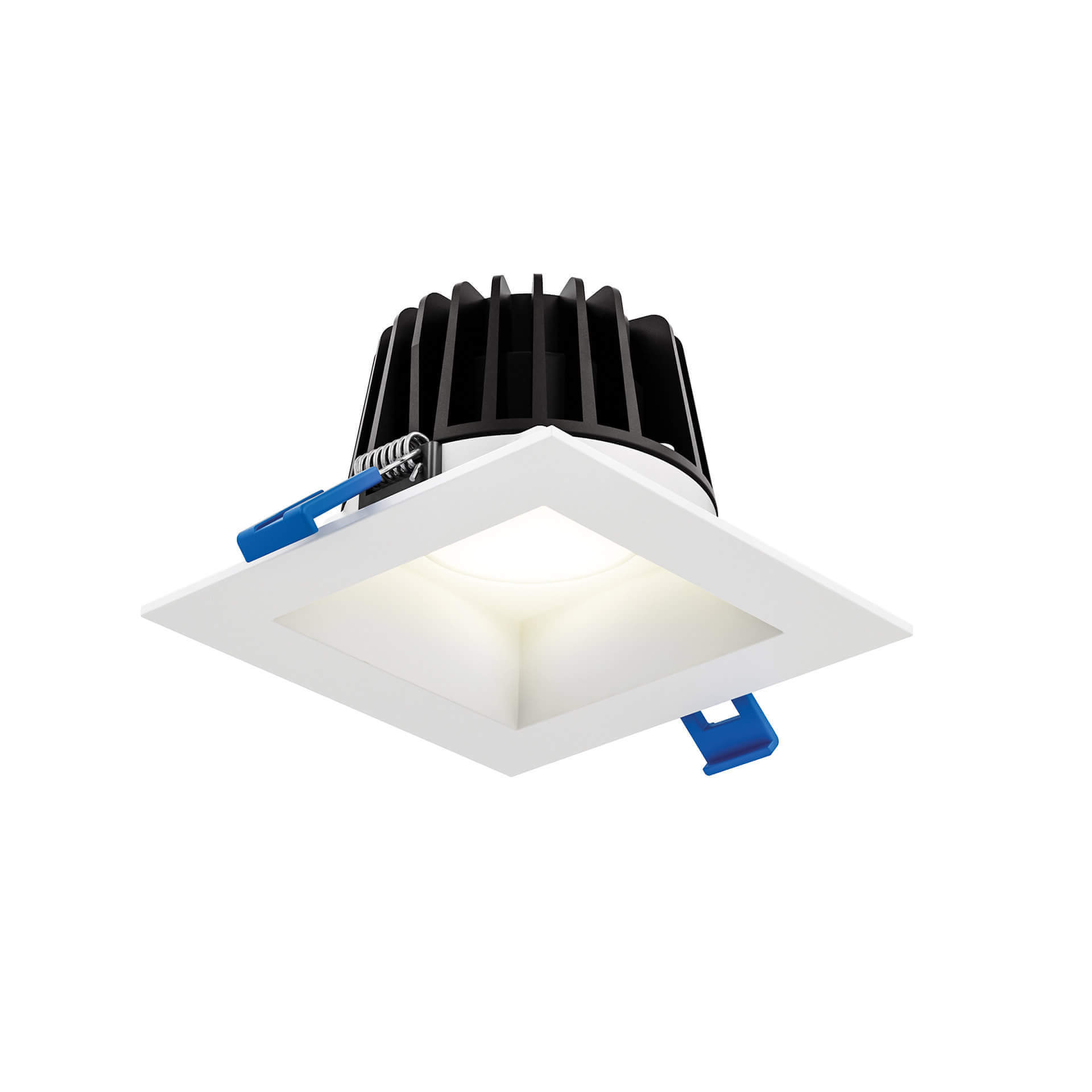

RGR6SQ-CC – 6″ square regressed downlight
RGR6SQ-CC – 6″ square regressed downlight
FAMILY : RGR Square
When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.
VOLTAGE
Standard 120 V - Stock item
Multi-voltage 120/277/347V - Not currently stocked, inquire for lead time and MOQ
FEATURES
CERTIFICATIONS
- Every fixture includes a junction box with integrated dimmable driver
- Can be daisy chained
- Superior LED performance and lifespan
- Regressed light source
- Minimal heat emission
- Aluminum construction
- Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
- IC certification (suitable for direct contact with insulation)
- Air-tight certified as per ASTM E283-04
- 40° beam angle
- Suitable for wet locations
- JA8 certified
- Ideal operating temperature: -20° to 40° C
- FT6Â rated cable
- 5-year warranty
