RGR6-CC – 6″ Regressed downlight

RGR6-CC – 6″ Regressed downlight

Model : RGR6-CC Categories , , ,

FAMILY : RGR

When choosing a recessed fixture, eliminating glare is a priority. The unique positioning of the LED module in this series of downlights will meet that important need.

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications ic
  • Certifications wet
  • Certifications energy-star
  • Certifications etl
  • Certifications ja8
  • Certifications air-tight

FEATURES

  • features color-temperature-switch-2
  • features direct-wire
  • features linkable
  • features low-glare
Watts

20W

Delivered Lumen

1600lm

LED Lumens

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

Voltage

120 | 277 | 347 V, 120V

Dimming

TRIAC

Cutout size

Ø6-½"

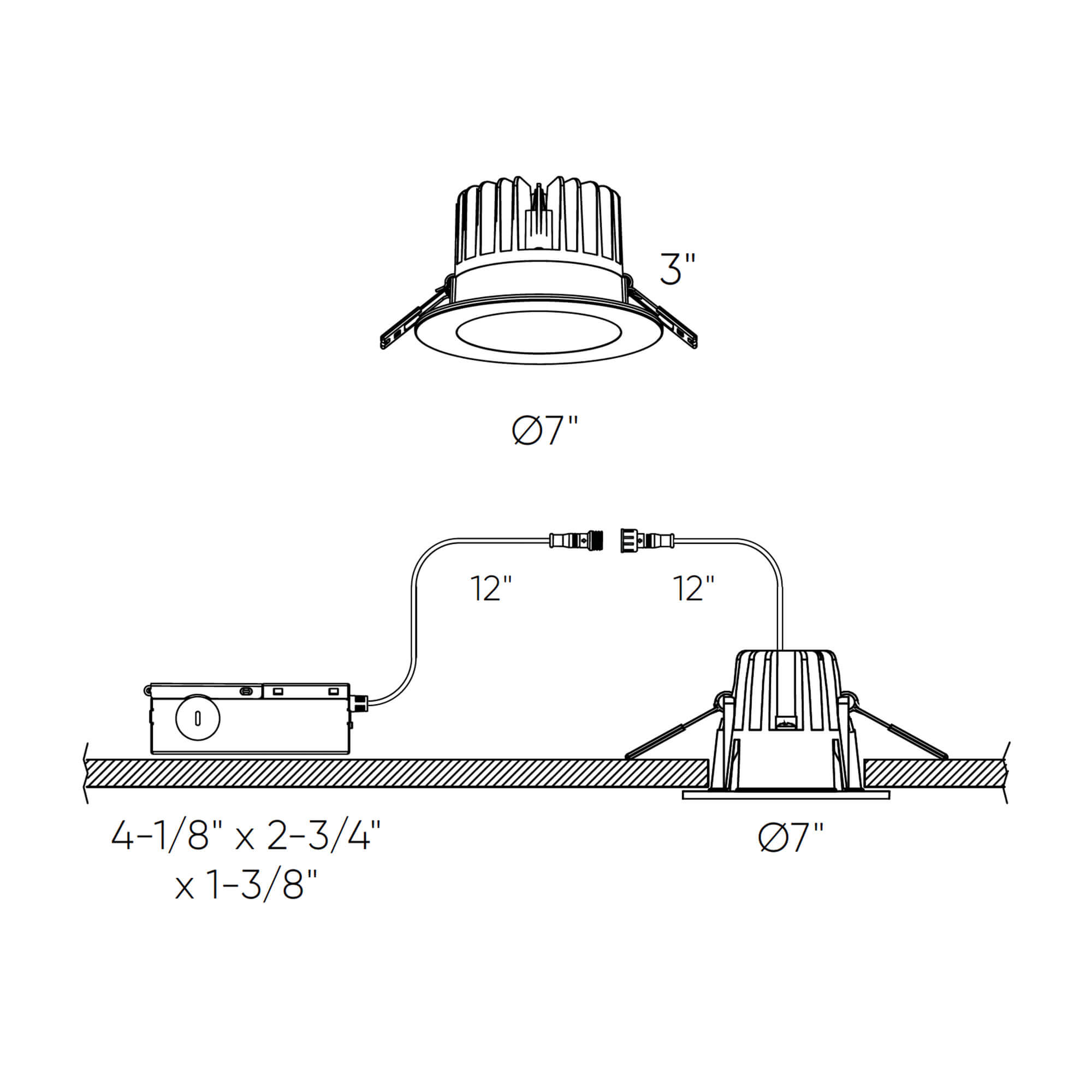

Dimensions

Ø7" x 3"

Lifetime

50000H

Dimensions

Ø7" x 3"

Lifetime

50000H

  • Every fixture includes a junction box with integrated dimmable driver
  • Can be daisy chained
  • Superior LED performance and lifespan
  • Regressed light source
  • Minimal heat emission
  • Aluminum construction
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • 40° beam angle
  • Suitable for wet locations
  • JA8 certified
  • Refer to website for dimmer compatibility
  • Ideal operating temperature: -20° to 40° C
  • FT6 rated cable
  • 5-year warranty
