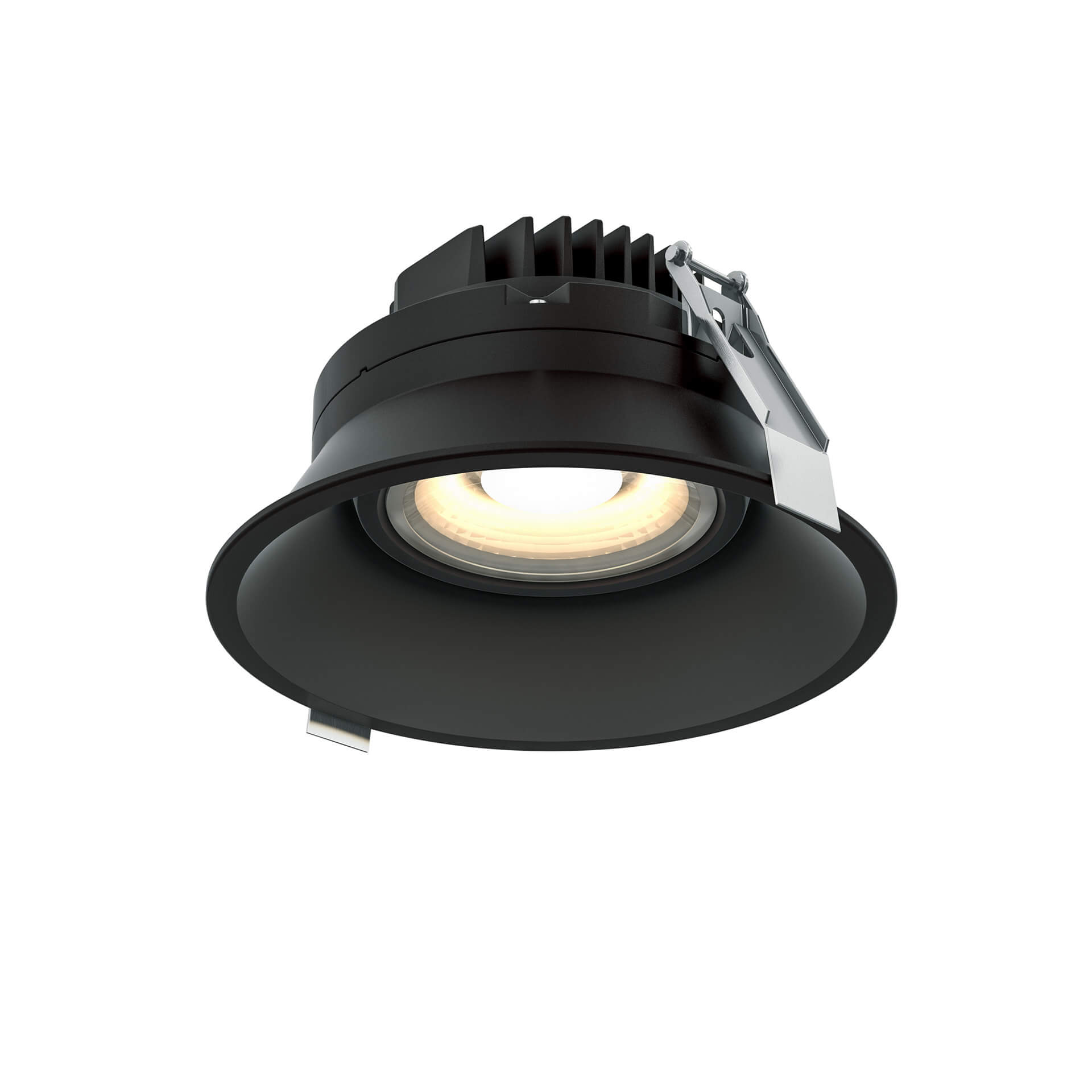

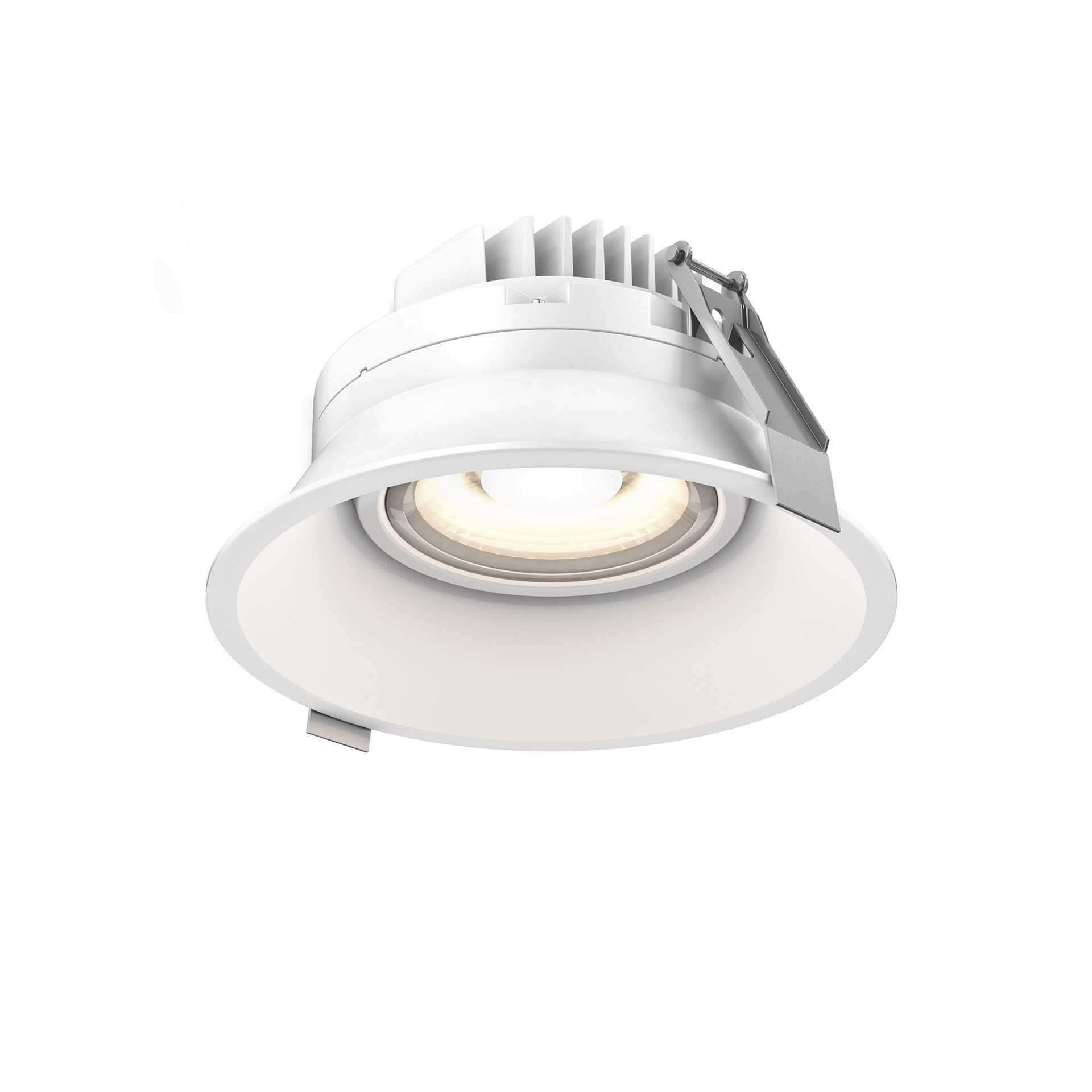

RGM6-CC – 6″ Regressed gimbal downlight with thin trim

RGM6-CC – 6″ Regressed gimbal downlight with thin trim

Model : RGM6-CC Categories , , , , , ,

FAMILY : Facet

This versatile modern thin-trim 2-, 4-, and 6-inch gimbal with multi-directional adjustable swivel produces a bright glow with minimal glare as a result of its regressed light source. Ideal for general lighting or for areas requiring a directional light to showcase unique elements or to create dramatic wall-wash effects.

VOLTAGE

  • Voltages standard120vStandard 120 V - Stock item
  • Voltages universal120vorderMulti-voltage 120/277/347V - Not currently stocked, inquire for lead time and MOQ

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications ic-rated
  • Certifications wet
  • Certifications etl-certified
  • Certifications t24-ja8
  • Certifications air-tight

FEATURES

  • features 5cct-color-select
  • features dimmable
  • features low-glare
  • features multi-voltage
  • features swivel
Watts

20W

Delivered Lumen

1500lm

Delivered Lumen

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

IP Rating

IP65

Standard Dimming

TRIAC

Cutout size

Ø6-1/2"

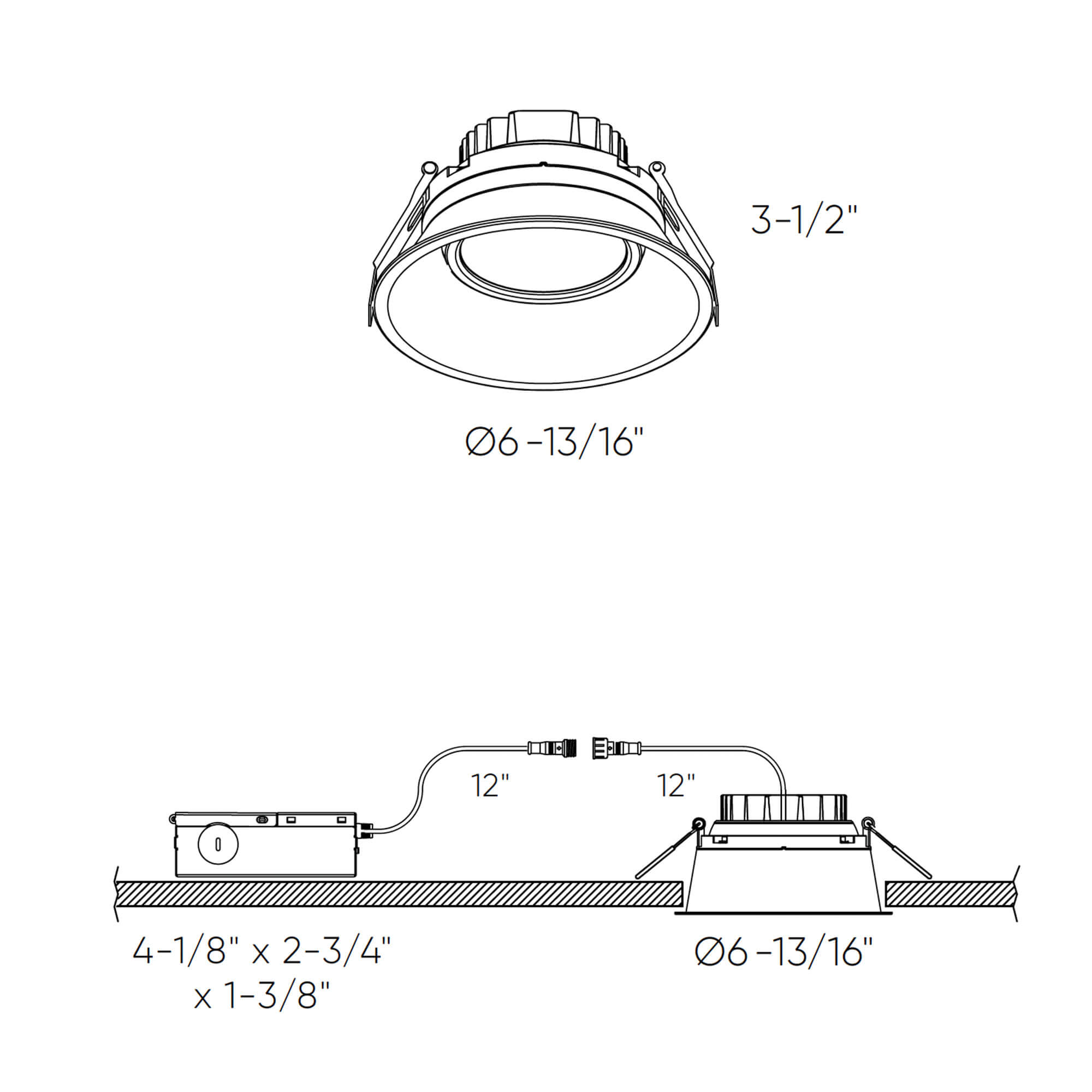

Dimensions

Ø6-13/16" x 3-1/2"

Lifetime

50000H

  • Every fixture includes a junction box with integrated dimmable driver
  • Can be daisy chained
  • Superior LED performance and lifespan
  • Regressed light source
  • Minimal heat emission
  • Aluminum construction
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • 40° beam angle
  • 30° tilting, 360° rotation
  • Suitable for wet locations
  • Ideal operating temperature: -20° to 40° C
  • JA8 certified
  • FT6 rated cable
  • 5-year warranty
