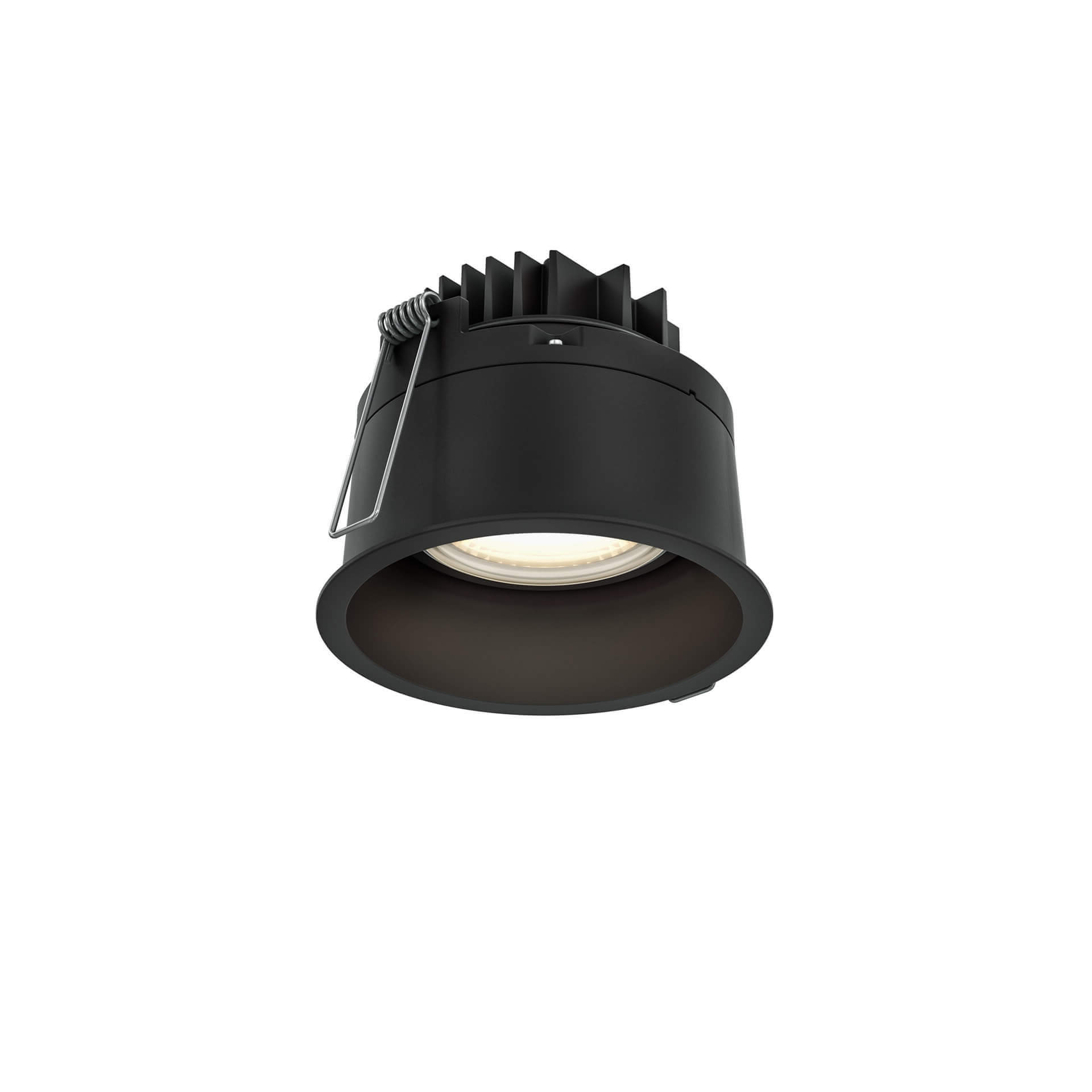

RGM4-CC – 4″ Regressed gimbal downlight with thin trim

RGM4-CC – 4″ Regressed gimbal downlight with thin trim

Model : RGM4-CC Categories , , , ,

FAMILY : Facet

This versatile modern thin-trim 2-, 4-, and 6-inch gimbal with multi-directional adjustable swivel produces a bright glow with minimal glare as a result of its regressed light source. Ideal for general lighting or for areas requiring a directional light to showcase unique elements or to create dramatic wall-wash effects.

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications ic
  • Certifications wet
  • Certifications energy-star
  • Certifications etl
  • Certifications ja8
  • Certifications air-tight
  • Certifications ft6

FEATURES

  • features color-temperature-switch-2
  • features dimmable
  • features direct-wire
  • features linkable
  • features low-glare
  • features swivel-directional
  • features multi-voltage
Watts

12W

Delivered Lumen

1200lm

LED Lumens

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

Voltage

120 | 277 | 347 V, 120V

IP Rating

IP44

Dimming

TRIAC

Cutout size

Ø4-1⁄4"

Dimensions

Ø4.5" x 3.5"

Lifetime

50000H

  • Every fixture includes a junction box with integrated dimmable driver
  • Can be daisy chained
  • Superior LED performance and lifespan
  • Regressed light source
  • Minimal heat emission
  • Aluminum construction
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • 40° beam angle
  • 30° tilting, 360° rotation
  • Suitable for wet locations
  • Ideal operating temperature: -20° to 40° C
  • JA8 certified
  • FT6 rated cable
  • 5-year warranty
