FGM4-CC-DUO – Double 4″ flat gimbal recessed

FGM4-CC-DUO – Double 4″ flat gimbal recessed

Model : FGM4-CC-DUO Categories , , , , ,

FAMILY : Pivot Duo

With an infinite choice of beam direction, Pivot Duo provides a discrete yet functional solution to general or accent lighting within your space.

VOLTAGE

  • Voltages standard120vStandard 120 V - Stock item
  • Voltages universal120vorderMulti-voltage 120/277/347V - Available on request, inquiry for lead time

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications ic-rated
  • Certifications wet
  • Certifications etl-certified
  • Certifications t24-ja8
  • Certifications air-tight

FEATURES

  • features 5cct-color-select
  • features dimmable
  • features multi-voltage
  • features swivel
Watts

18W

Delivered Lumen

1475lm

LED Lumens

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

Standard Dimming

TRIAC

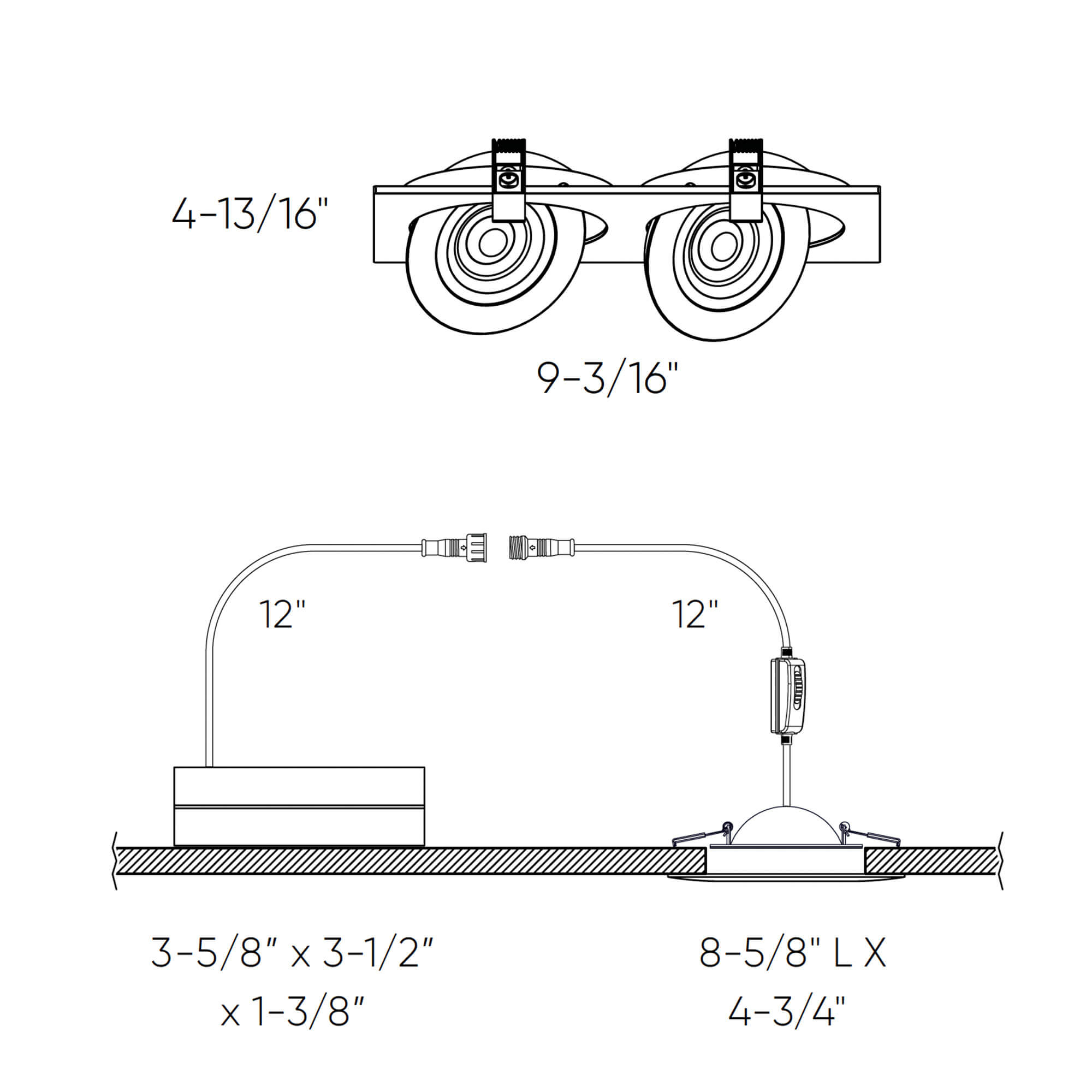

Cutout size

8-5/8" x 4-5/8"

Dimensions

9-3/16" x 4-13/16"

Lifetime

50000H

  • Includes a junction box with integrated dimmable driver
  • Can be daisy chained
  • Superior LED performance and lifespan
  • 90° tilting, 360° rotation
  • Minimal heat emission
  • Aluminum construction
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
  • Low profile
  • 40° beam spread
  • IC certification (suitable for direct contact with insulation)
  • Suitable for wet locations
  • Ideal operating temperature: -20° to 40° C
  • 5-year warranty
