| Recommended Dimmers | See spec sheet in downloads tab for recommended dimmers |
|---|---|
| Watts | 9W |
| Delivered Lumen | 800lm |
| Delivered Lumen | |
| CRI | 90+ |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT |
| Standard Dimming | 0-10V, ELV, TRIAC |
| Cutout size | Ø4-1⁄4" |

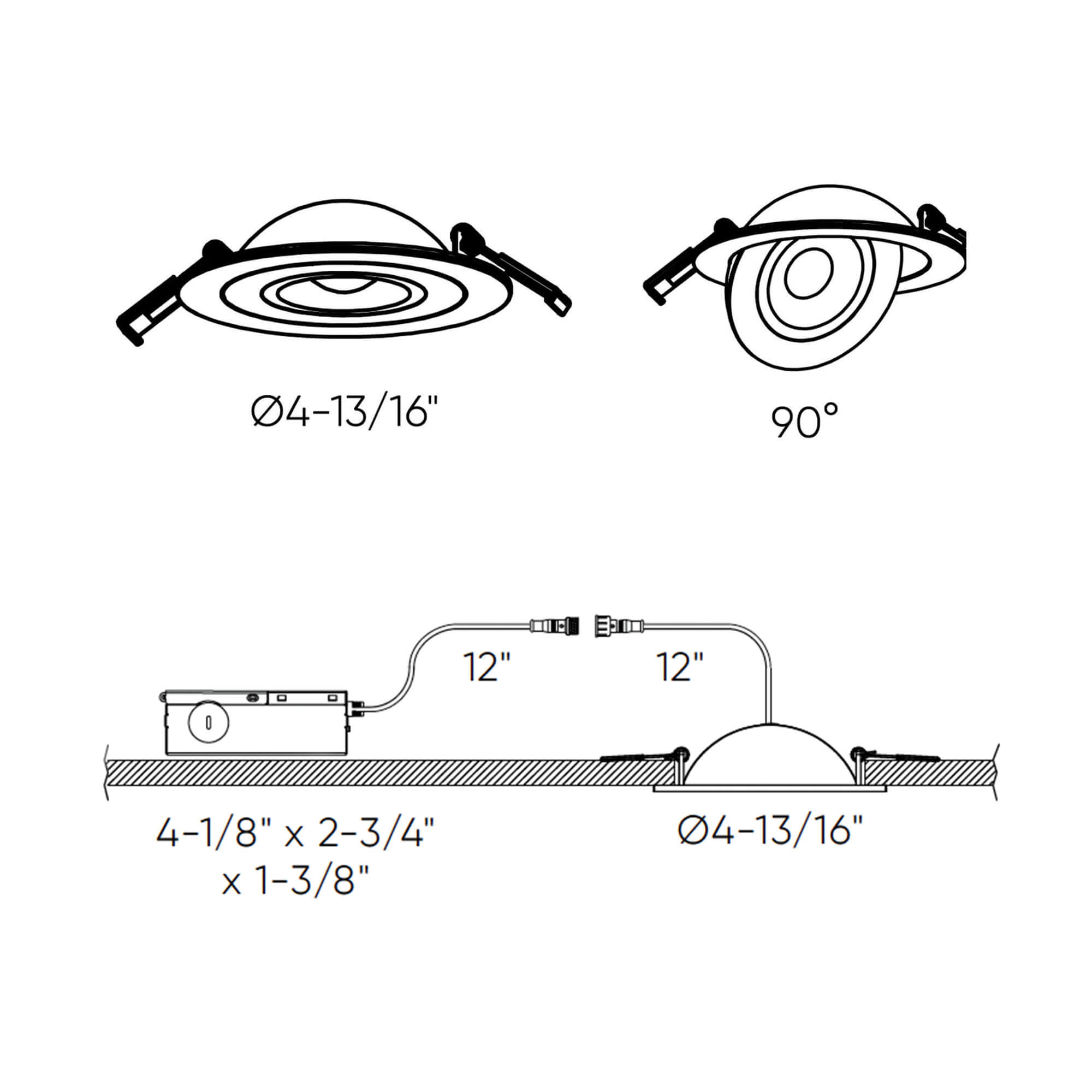

| Dimensions | Ø4-13/16" x 1-5/16" |
| Lifetime | 50000H |

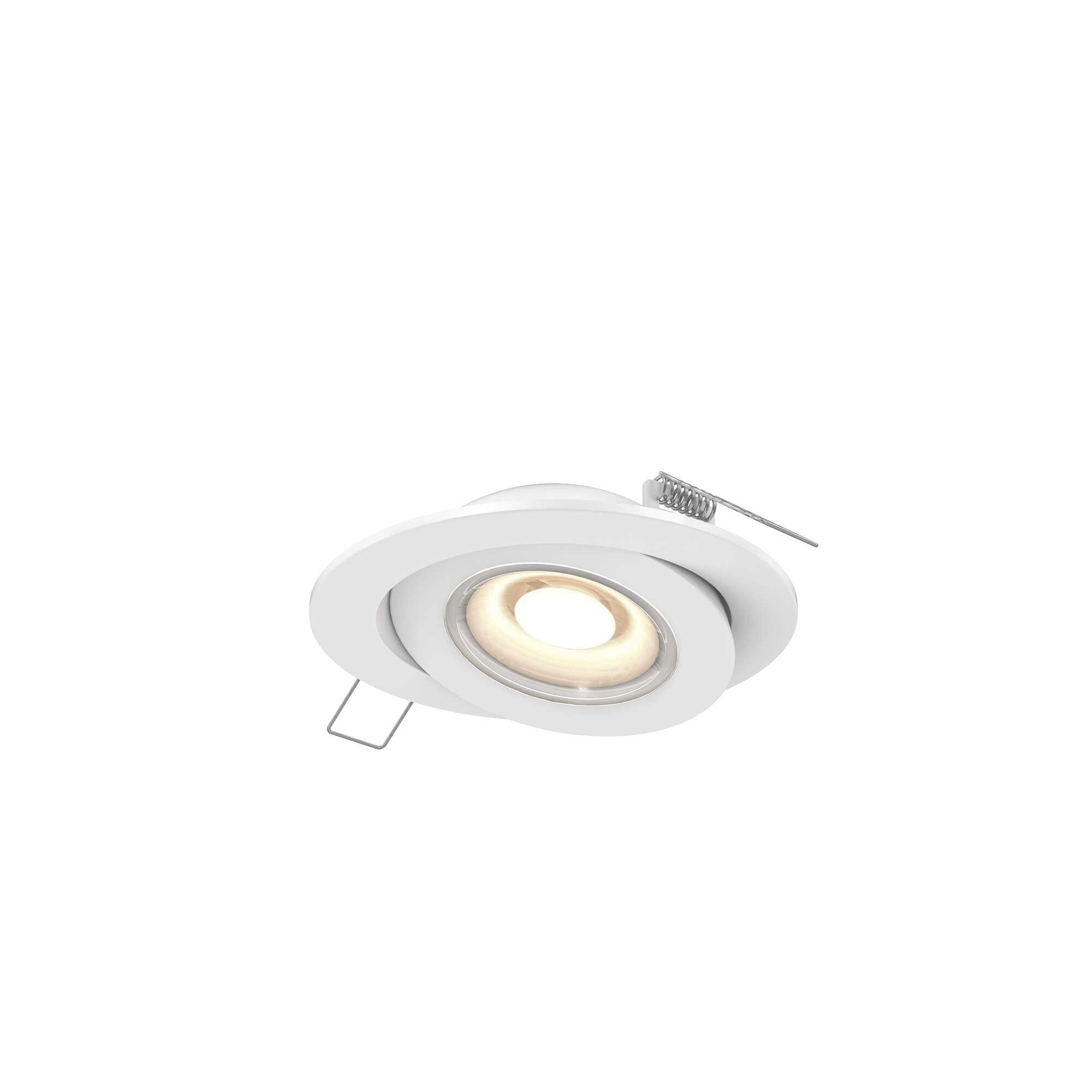

FGM4-CC – 4″ flat gimbal recessed
FGM4-CC – 4″ flat gimbal recessed
FAMILY : Pivot
When searching for lighting flexibility, look no further than our 3″, 4” & 6″ flat gimbal LED downlights. With powerful lumen output and the ability to direct light with a 360° rotation and a 90° tilt angle, this product will meet your every need.
VOLTAGE
Standard 120 V - Stock item
- Multi-voltage 120/277/347V - Stock item
CERTIFICATIONS
FEATURES
- Every fixture includes a junction box with integrated dimmable driver
- Can be daisy chained
- Superior LED performance and lifespan
- 90° tilting, 360° rotation
- Minimal heat emission
- Aluminum construction
- Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
- Low profile
- 40° beam spread
- IC certification (suitable for direct contact with insulation)
- Air-tight certified as per ASTM E283-04
- Suitable for wet locations
- Ideal operating temperature: -20° to 40° C
- 5-year warranty
