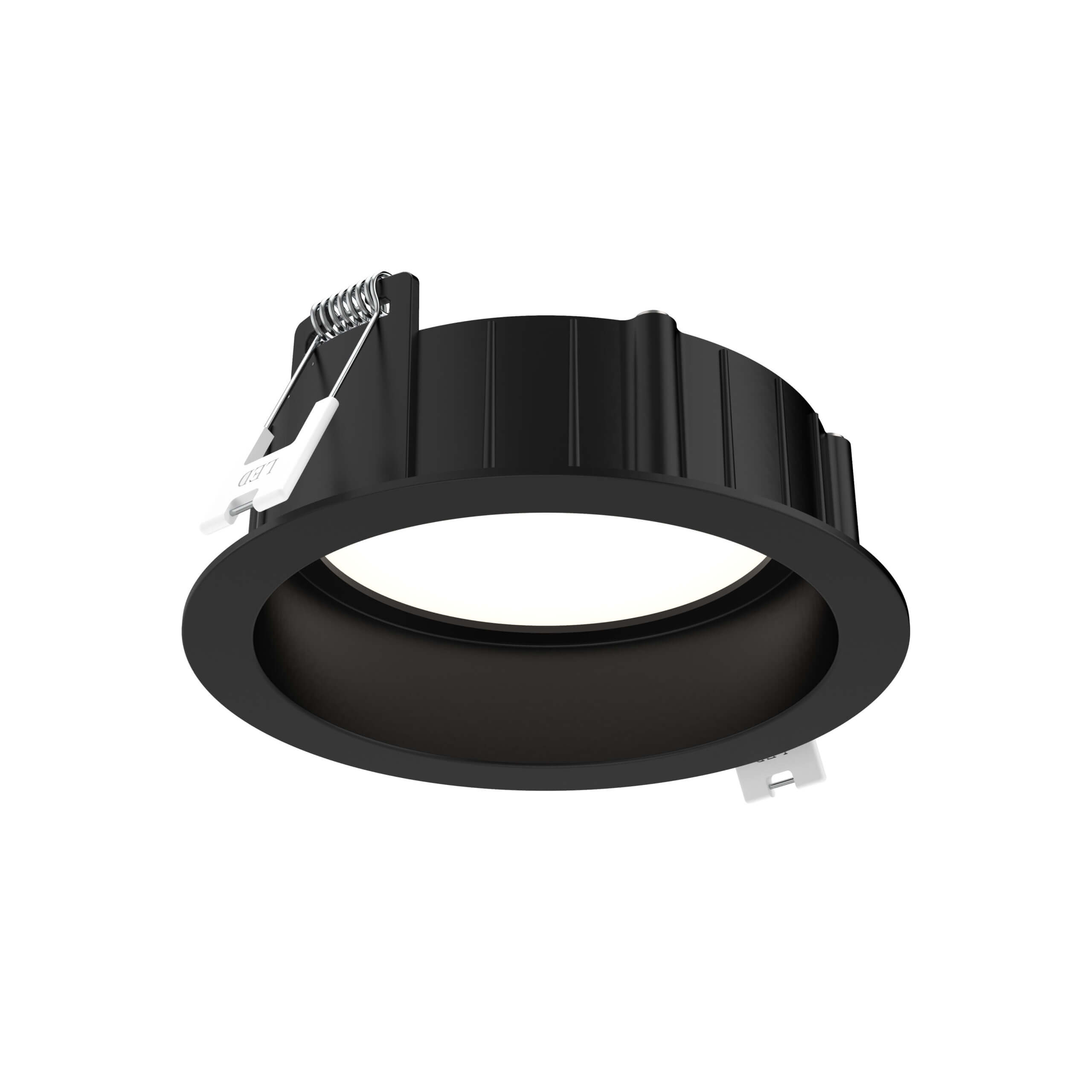

DRR4-CC - 4" Regressed Panel

DRR4-CC - 4" Regressed Panel

Model : DRR4-CC Categories , , , ,

FAMILY : Notch

The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications ic
  • Certifications wet
  • Certifications energy-star
  • Certifications etl
  • Certifications air-tight

FEATURES

  • features color-temperature-switch-2
  • features dimmable
  • features direct-wire
  • features linkable
  • features low-glare
Voltage

120V

Watts

11W

Delivered Lumen

800lm

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

Dimmable

ELV, TRIAC

Dimensions

Ø4-3/4" x 1-7/8"

Cutout size

Ø4-1⁄4"

Dimensions

Ø4-3/4" x 1-7/8"

Lifetime

50000H

  • Every fixture includes a junction box with an integrated driver
  • Over 50,000 hours of service life
  • Can be daisy chained
  • Smooth 360° wide spread
  • 100° beam angle
  • Minimal heat emission
  • Frosted lens
  • Edge lit technology
  • Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K

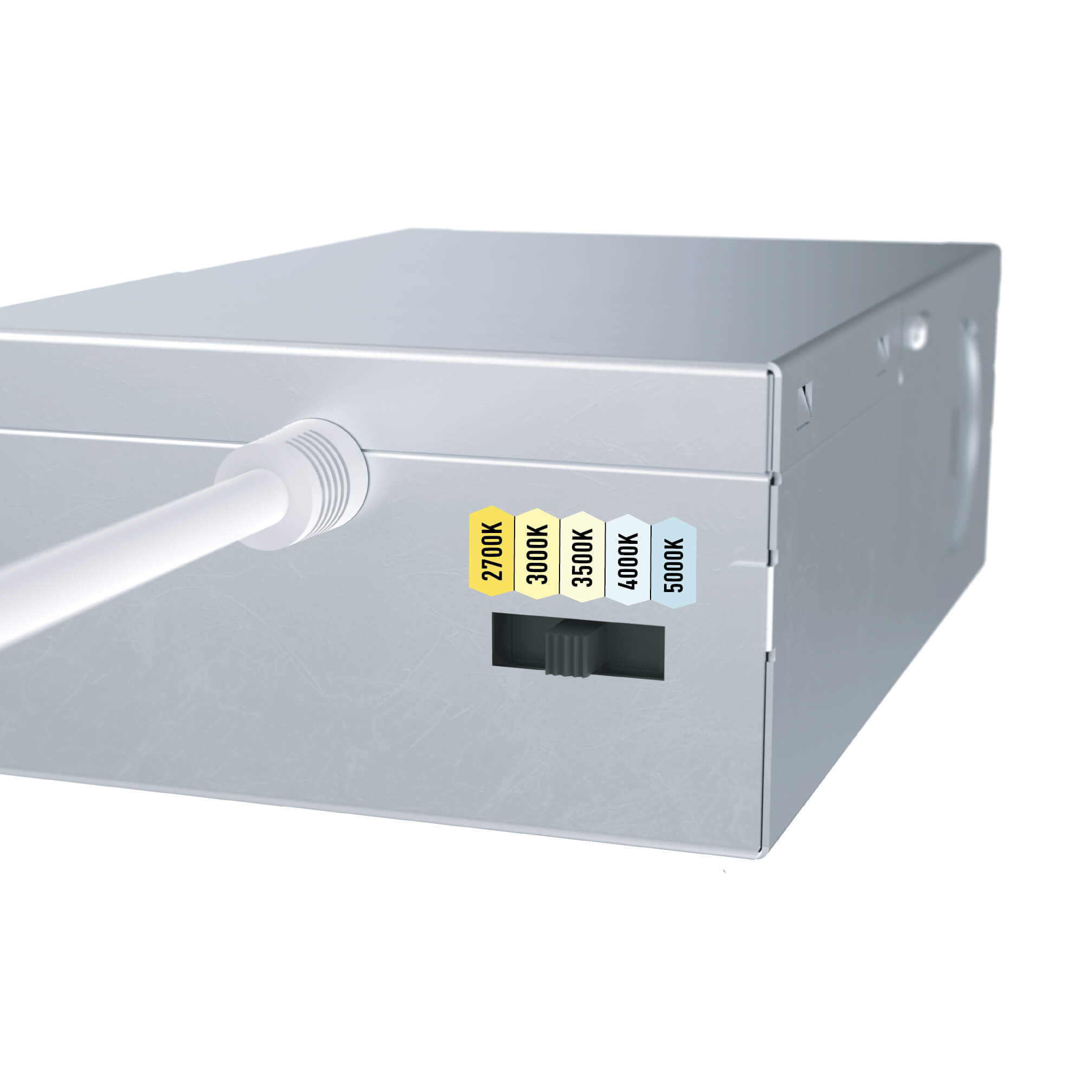

  • Easy-access CCT switch on panel wire
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • Suitable for wet locations
  • Ideal operating temperature: -20° to 40°
  • 5-year warranty
