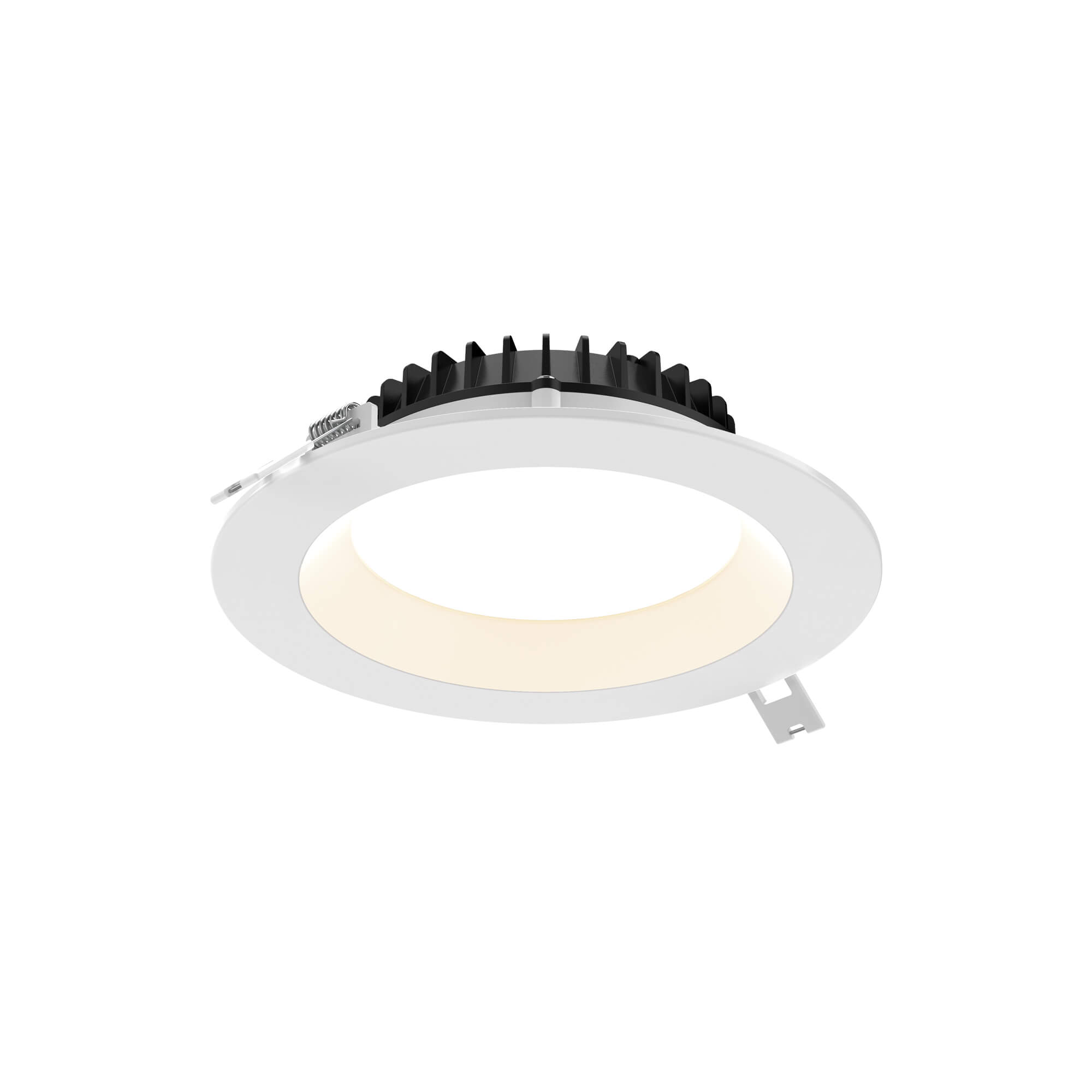

DDP6-CC – 6″ Regressed Panel

DDP6-CC – 6″ Regressed Panel

Model : DDP6-CC Categories , , , ,

FAMILY : Etch

The Etch range of circular recessed downlights, characterised by a deep-set LED position, provides a functional solution to general lighting without the uncomfortable glare.

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications ic
  • Certifications wet
  • Certifications energy-star
  • Certifications etl
  • Certifications ja8
  • Certifications air-tight

FEATURES

  • features color-temperature-switch-2
  • features dimmable
  • features direct-wire
  • features linkable
  • features low-glare
  • features multi-voltage
Watts

20W

Delivered Lumen

1500lm

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

Voltage

120 | 277 | 347 V, 120V

IP Rating

IP44

Dimming

ELV, TRIAC

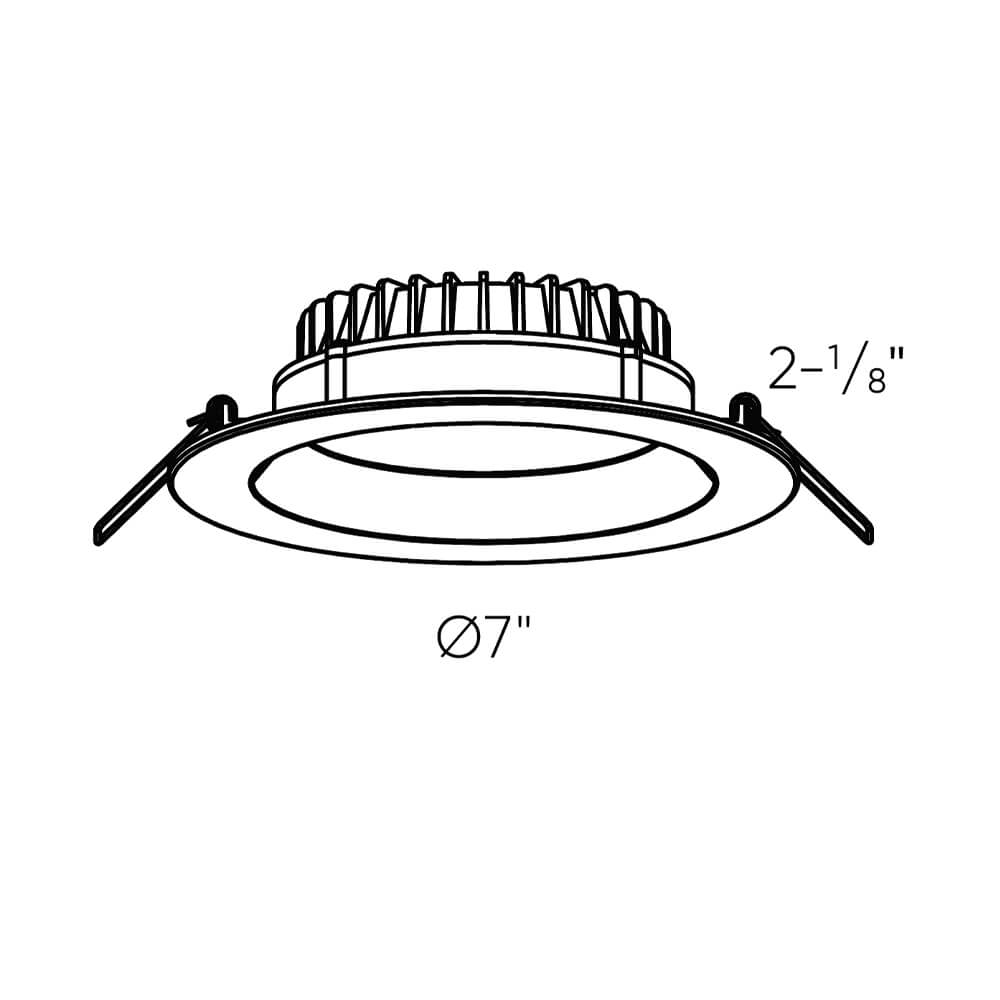

Dimensions

Ø7" x 2-1/8"

Cutout size

Ø6-½"

Dimensions

Ø7" x 2-1/8"

Lifetime

50000H

  • Every fixture includes a junction box with an integrated driver
  • Over 50,000 hours of service life
  • Can be daisy chained
  • Smooth 360° wide spread
  • 125° beam angle
  • Minimal heat emission
  • Frosted lens
  • Edge lit technology
  • Cast aluminum construction
  • Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
  • Easy-access CCT switch on panel wire
  • Very low profile
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • Suitable for wet locations
  • Ideal operating temperature: -20° to 40°
  • 5-year warranty
