FGM4SQ-CC – 4″ square gimbal recessed

FGM4SQ-CC – 4″ square gimbal recessed

Model : FGM4SQ-CC Categories , , , ,

FAMILY : Pivot square

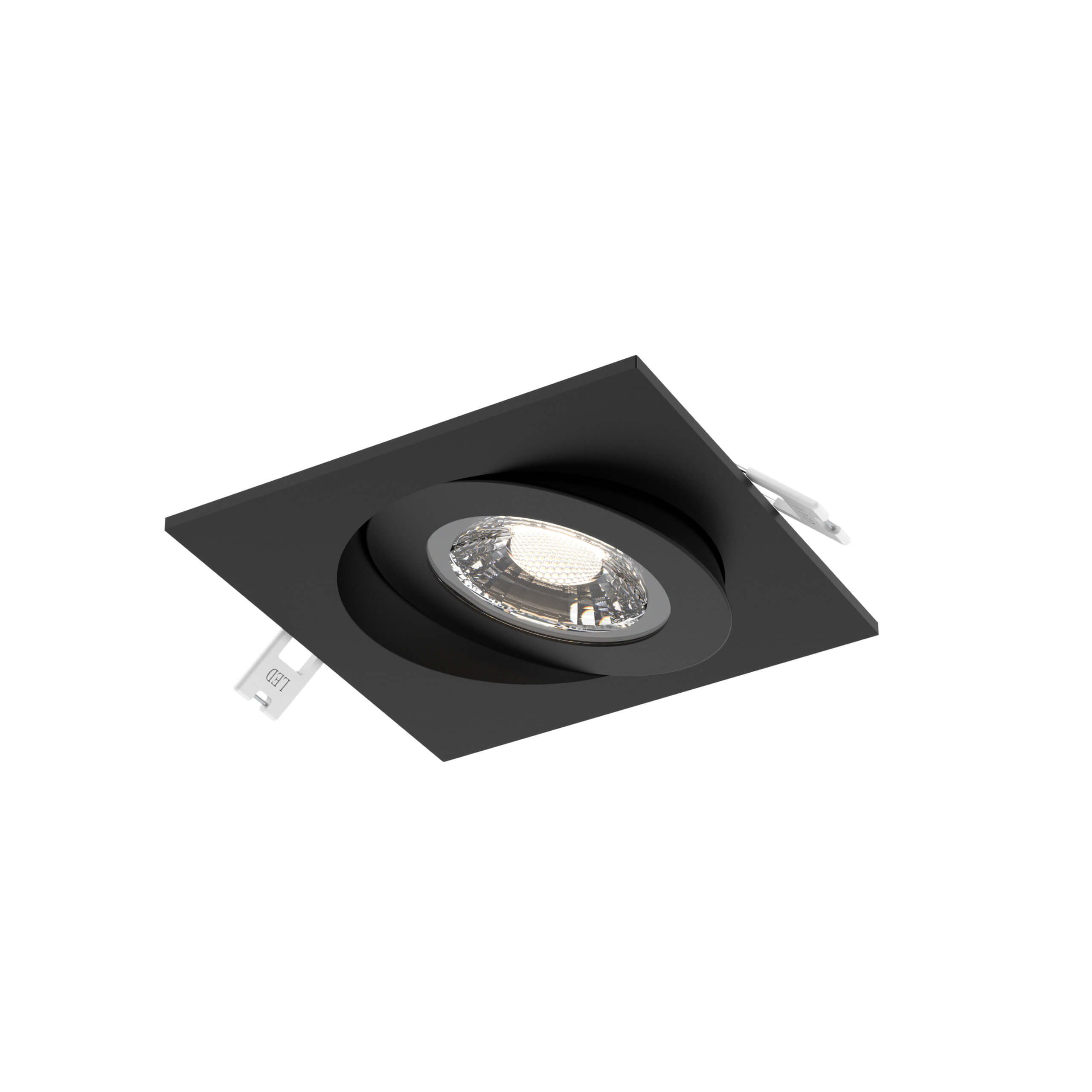

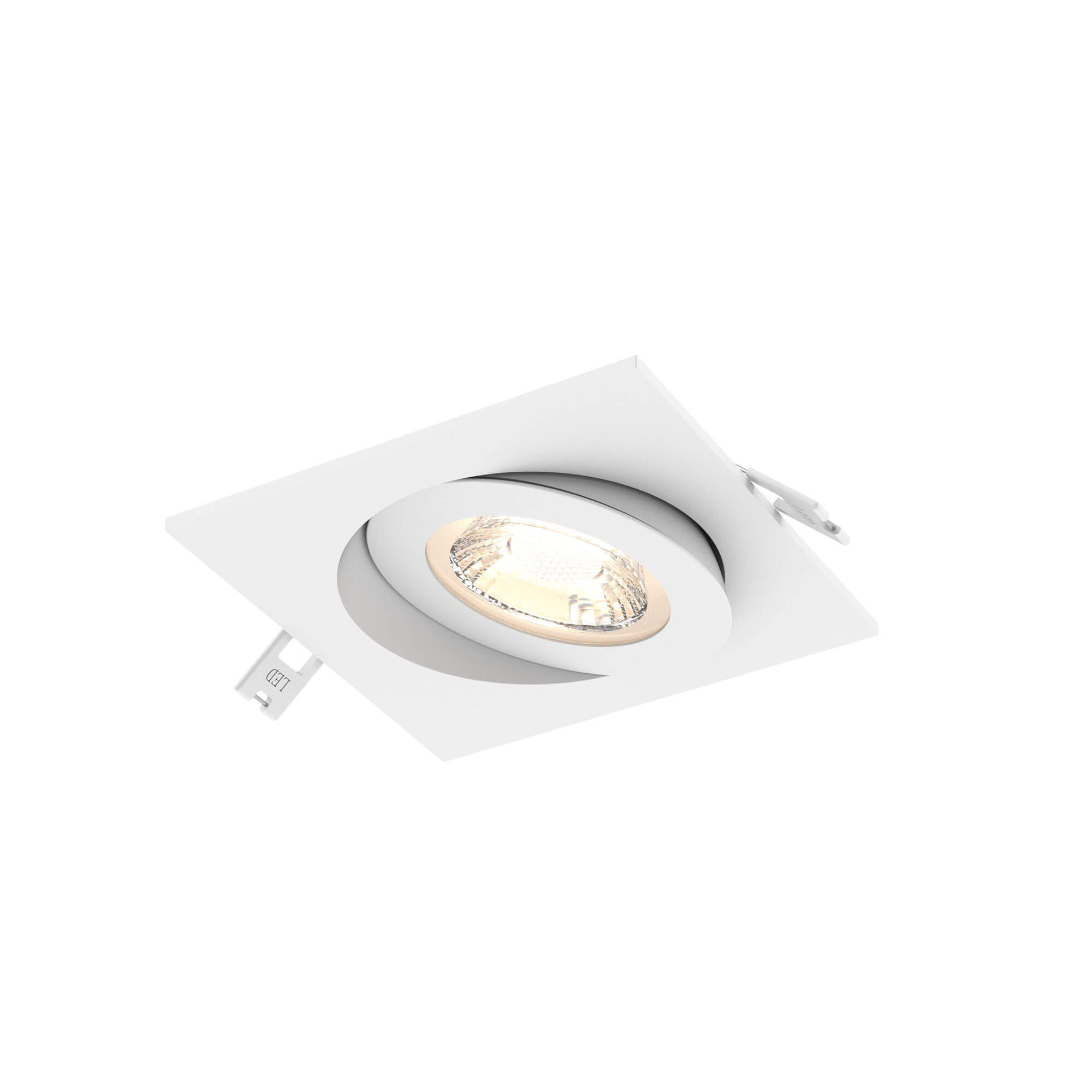

When searching for lighting flexibility, look no further than our 4-inch square flat gimbal LED downlight. With a powerful lumen output and the ability to direct light through a 360° rotation and a 90° tilt angle, this product will meet all your lighting needs.

CERTIFICATIONS

  • Certifications indoor
  • Certifications outdoor
  • Certifications ic
  • Certifications wet
  • Certifications energy-star
  • Certifications etl
  • Certifications ja8
  • Certifications air-tight

FEATURES

  • features color-temperature-switch-2
  • features dimmable
  • features linkable
  • features swivel-directional
  • features multi-voltage
Watts

9W

Delivered Lumen

800lm

CRI

90+

Color Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 5CCT

Voltage

120 | 277 | 347 V, 120V

Dimming

TRIAC

Cutout size

Ø4-1/4"

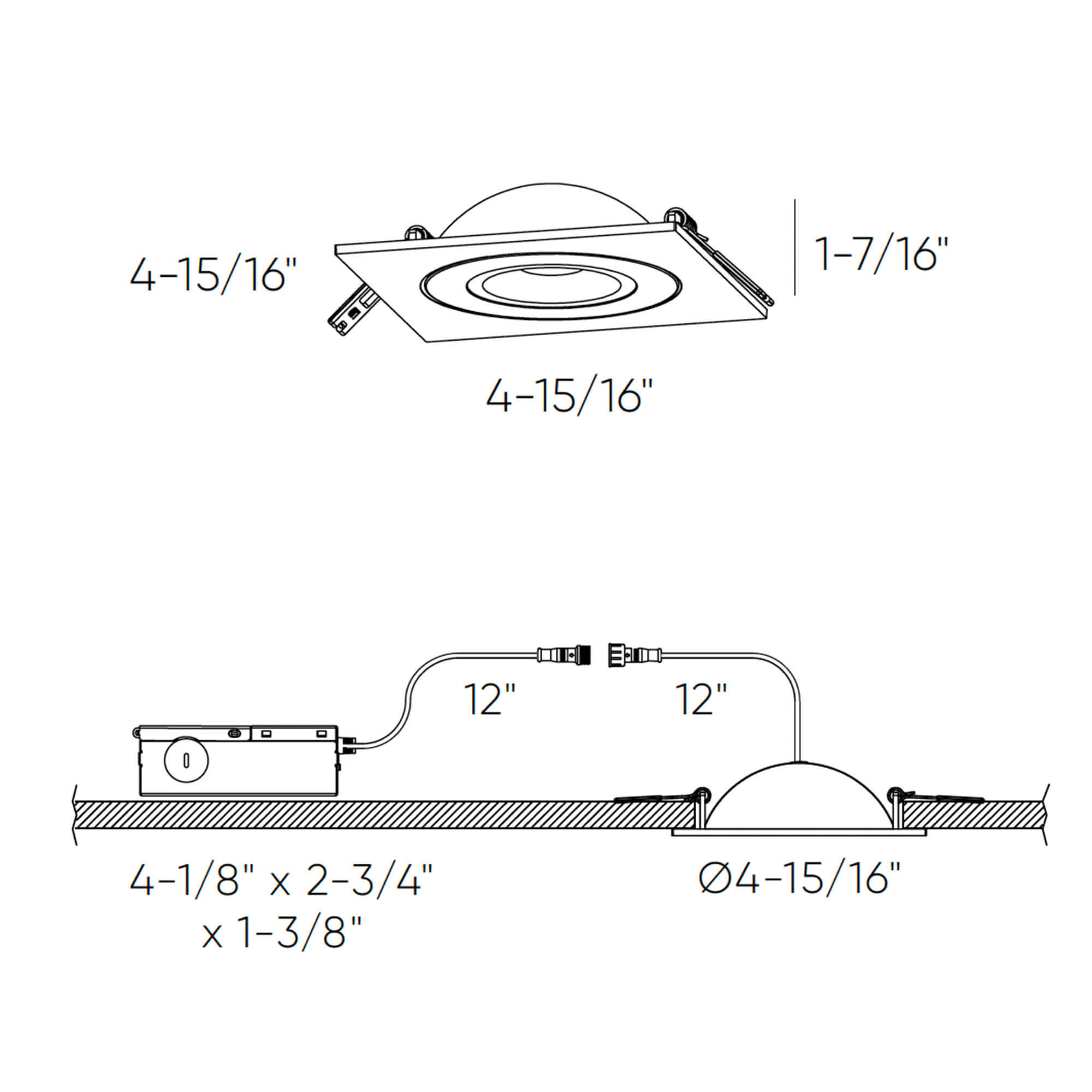

Dimensions

4-15/16" x 4-15/16" x 1-7/16"

Lifetime

50000H

  • Every fixture includes a junction box with integrated dimmable driver
  • Can be daisy chained
  • Superior LED performance and lifespan
  • 90° tilting, 360° rotation
  • Minimal heat emission
  • Aluminum construction
  • Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K*
  • Low profile
  • 40° beam spread
  • IC certification (suitable for direct contact with insulation)
  • Air-tight certified as per ASTM E283-04
  • Suitable for wet locations
  • Ideal operating temperature: -20° to 40° C
  • 5-year warranty
