| Finish | |
|---|---|
| Input Voltage | 120 VAC |
| Output Voltage | 12 VDC |

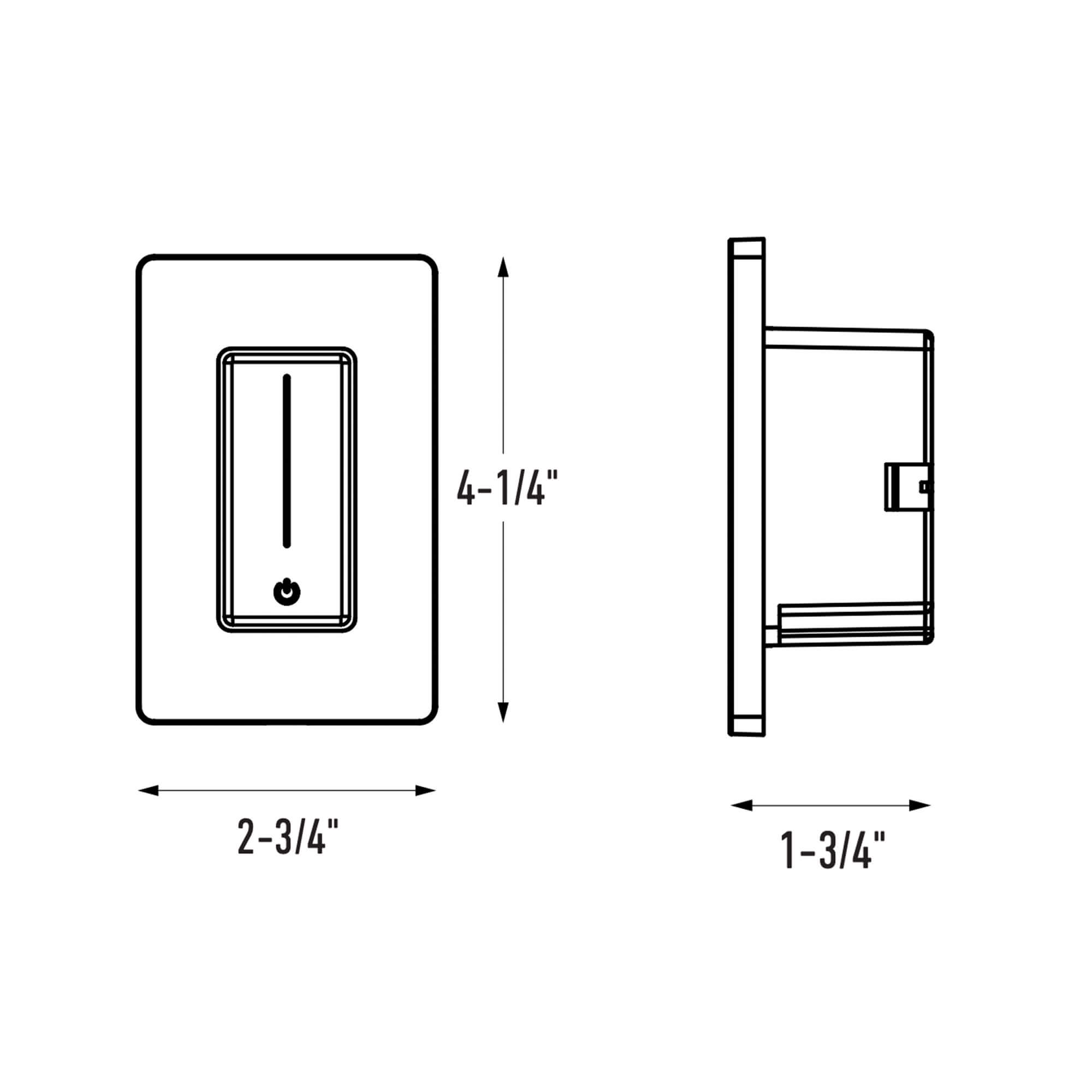

| Dimensions | 4-1/4" x 2-3/4" |

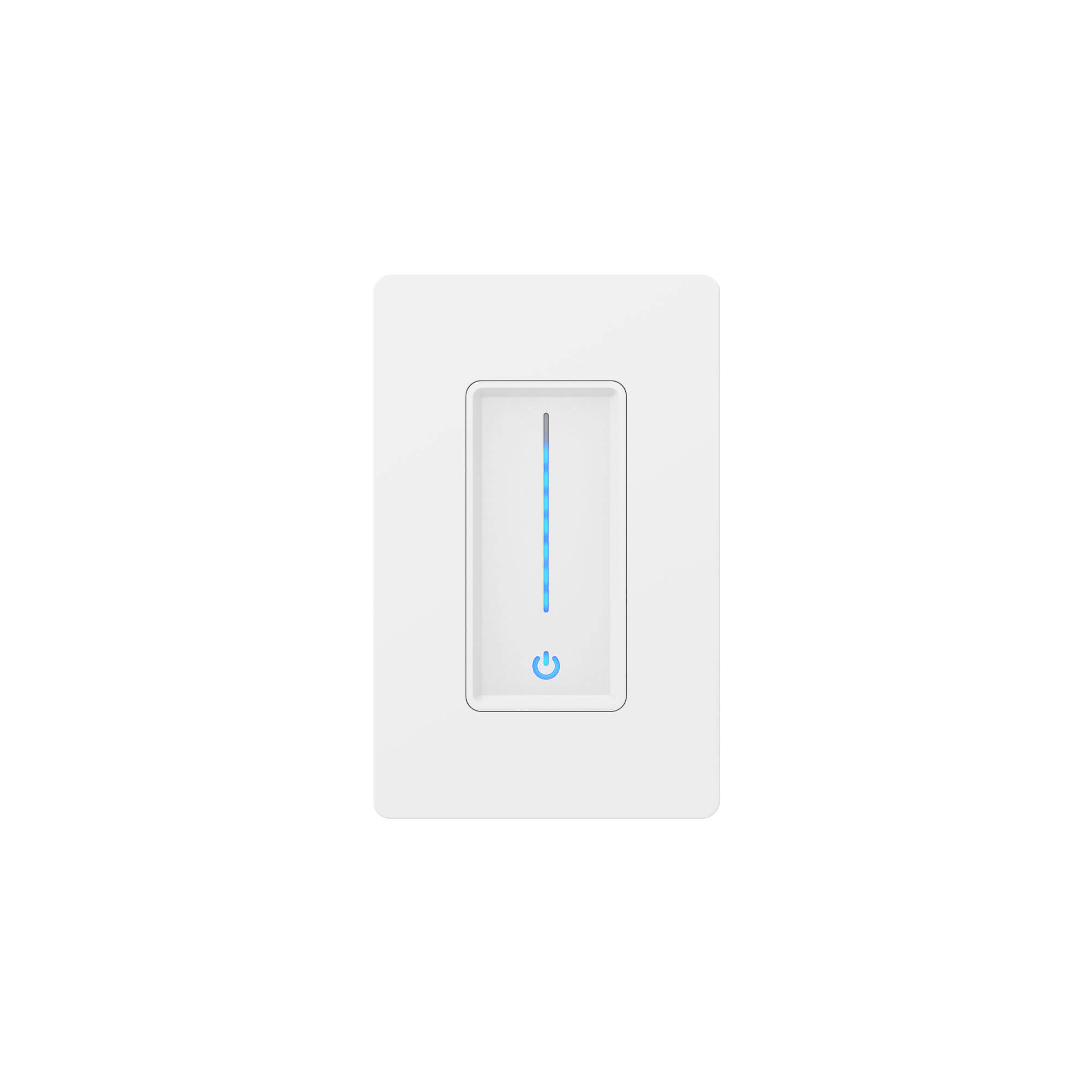

DD1260 – 2-in-1 Low-voltage driver and dimmer
DD1260 – 2-in-1 Low-voltage driver and dimmer
FAMILY : Slide
Replace your 12V driver with this 12V dimmer switch with an integrated driver to control the brightness of your low voltage lights. Connect this unit to your 120V input current, and all your lights will dim to a nice, soft glow.
CERTIFICATIONS
FEATURES

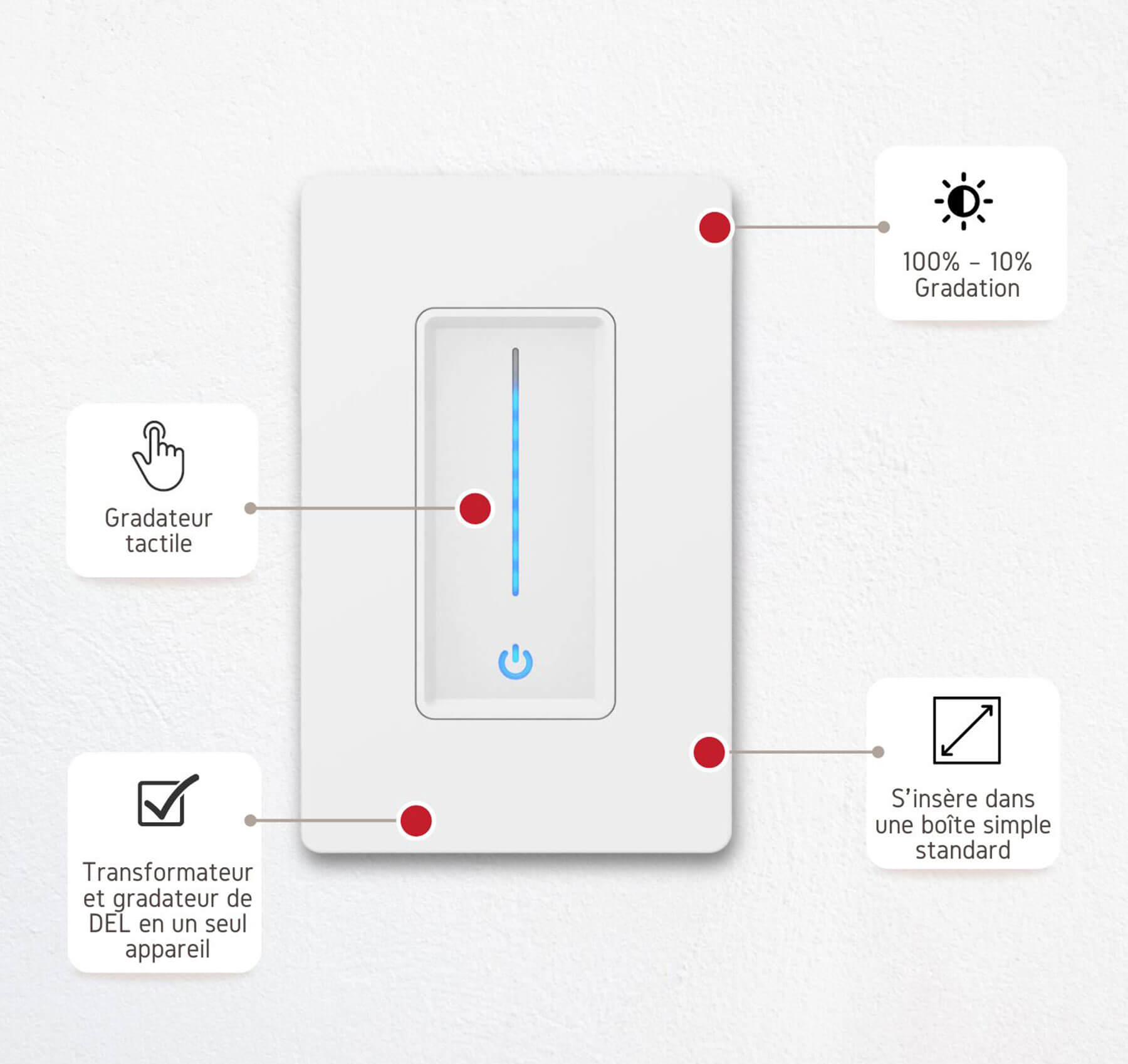

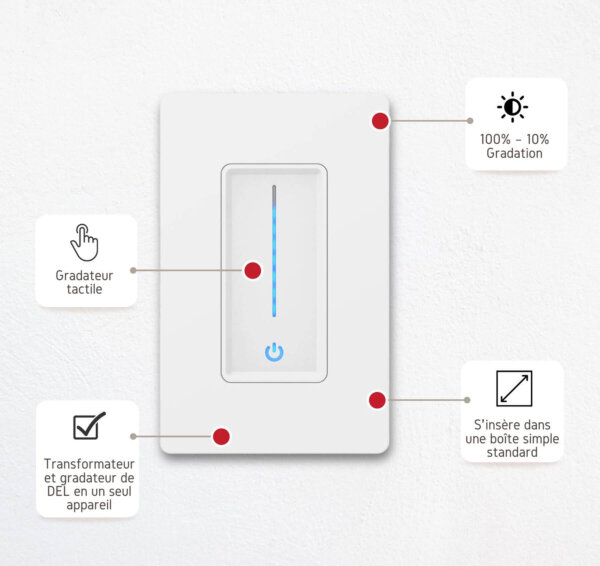

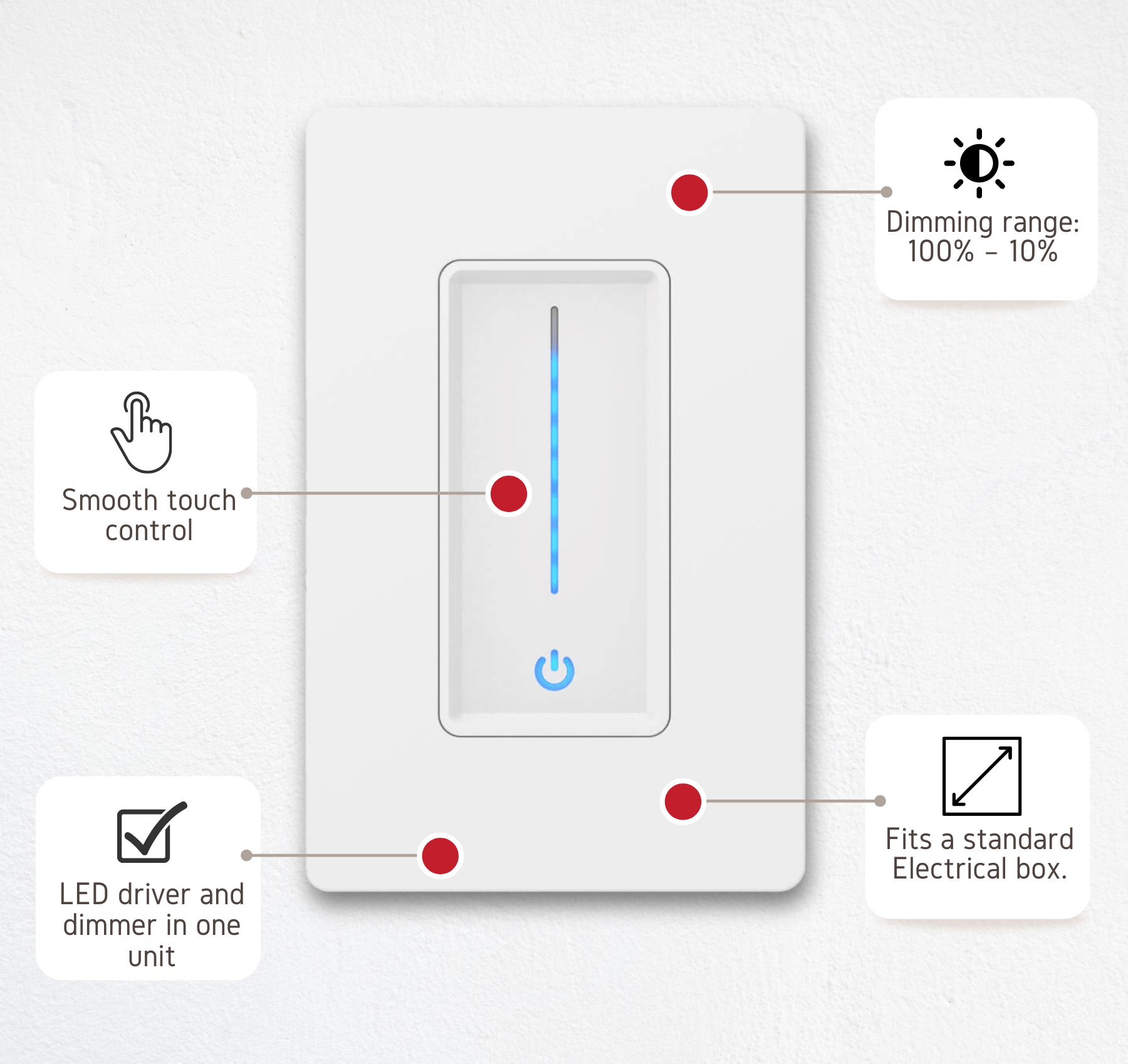

- LED driver and dimmer in one unit
- Indoor use only
- Input: 120 VAC ~ 1.0 A, 60 Hz
- Dimmimg range: 100% – 10%
- Dimming type: TRIAC edge cut
- Fits in a standard electrical box
- Single pole
- Works with all dimmable 12V lights
- 5-year warranty
