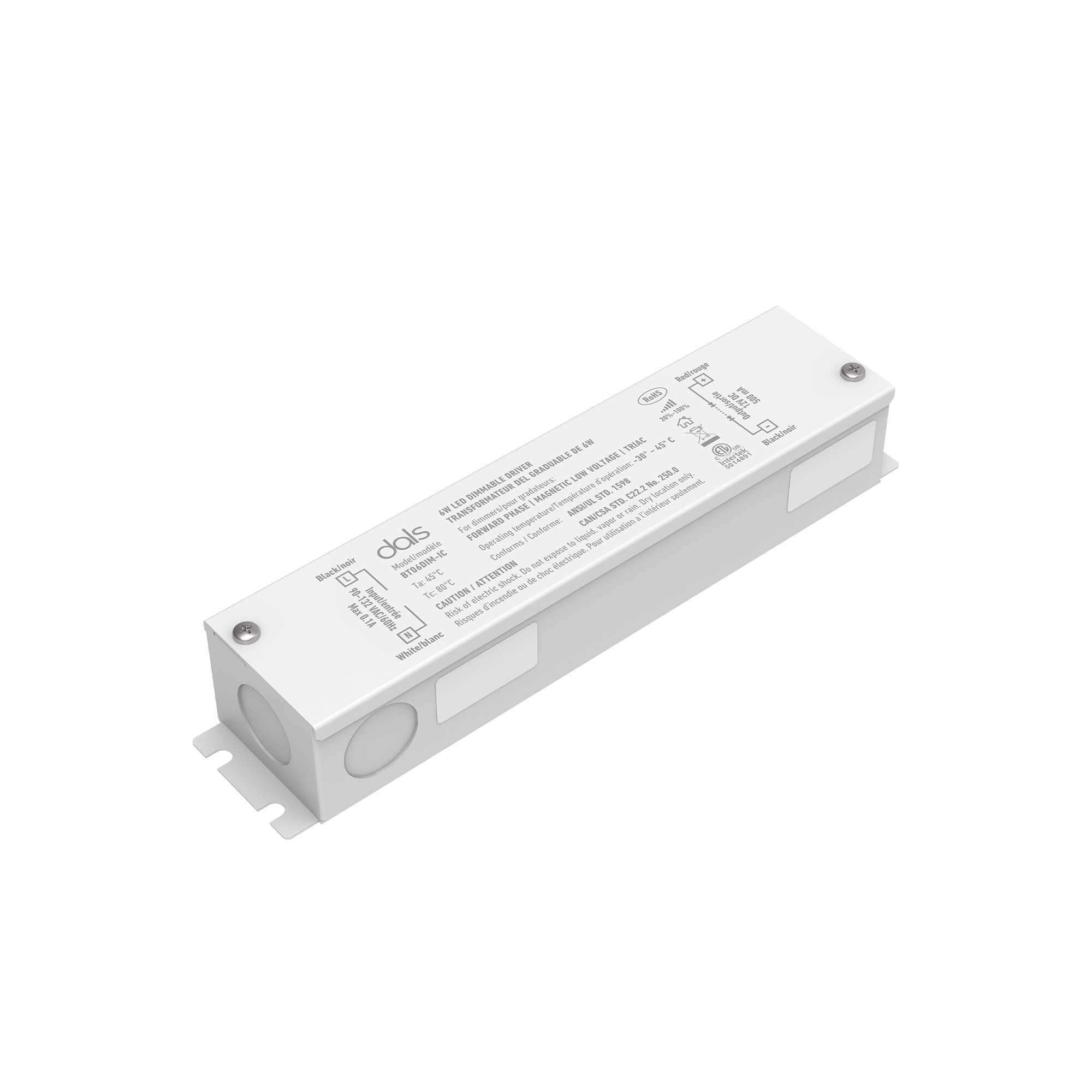

BT06DIM-IC – 6W 12V DC Dimmable LED Hardwire driver

BT06DIM-IC – 6W 12V DC Dimmable LED Hardwire driver

Model : BT06DIM-IC Categories , ,

Dimming is made easy with our LED Dimmable Driver series. These products will allow you to find just the right amount of light based on the time of day your lighting fixtures are being used.

Compatible products:  SM-DIMSW  |  SWIVLED12  |  SWIVLEDHP  4001  |  4001HP  |  4002  |  4002HP  |  4005FR  4005HP  |  4006  4006SQ  LEDRDP18 LINU12

59.99$ USD

CERTIFICATIONS

  • Certifications indoor
  • Certifications ic
  • Certifications etl
  • Certifications dry

FEATURES

  • features dimmable
  • features direct-wire
Driver wattage

6W

Voltage

120V, 12V

Dimming

ELV, TRIAC

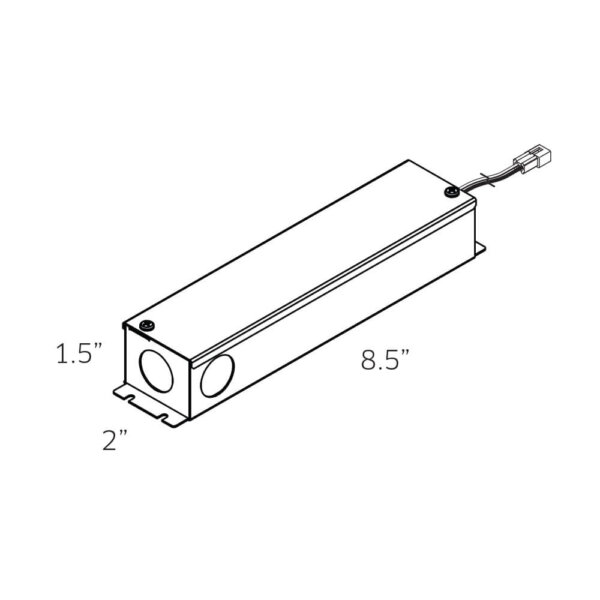

Dimensions

1.5" x 2" x 8.5"

  • Constant voltage mode power supply
  • AC-dimming supply (with TRIAC or ELV dimmer)
  • Protection: short circuit / Over voltage
  • Integrated junction box for hard wire installation
  • Fully isolated metal case – Cooling by air convection
  • 5 years warranty
  • ETL certification
  • Optimal dimming when used at 50% or more of total load
  • Input voltage: 100VAC-230VAC, 50/60Hz
  • Output voltage: 12V DC
  • Load Range: 50% to 100%
  • Operating temperature: -30°C to 45°C
