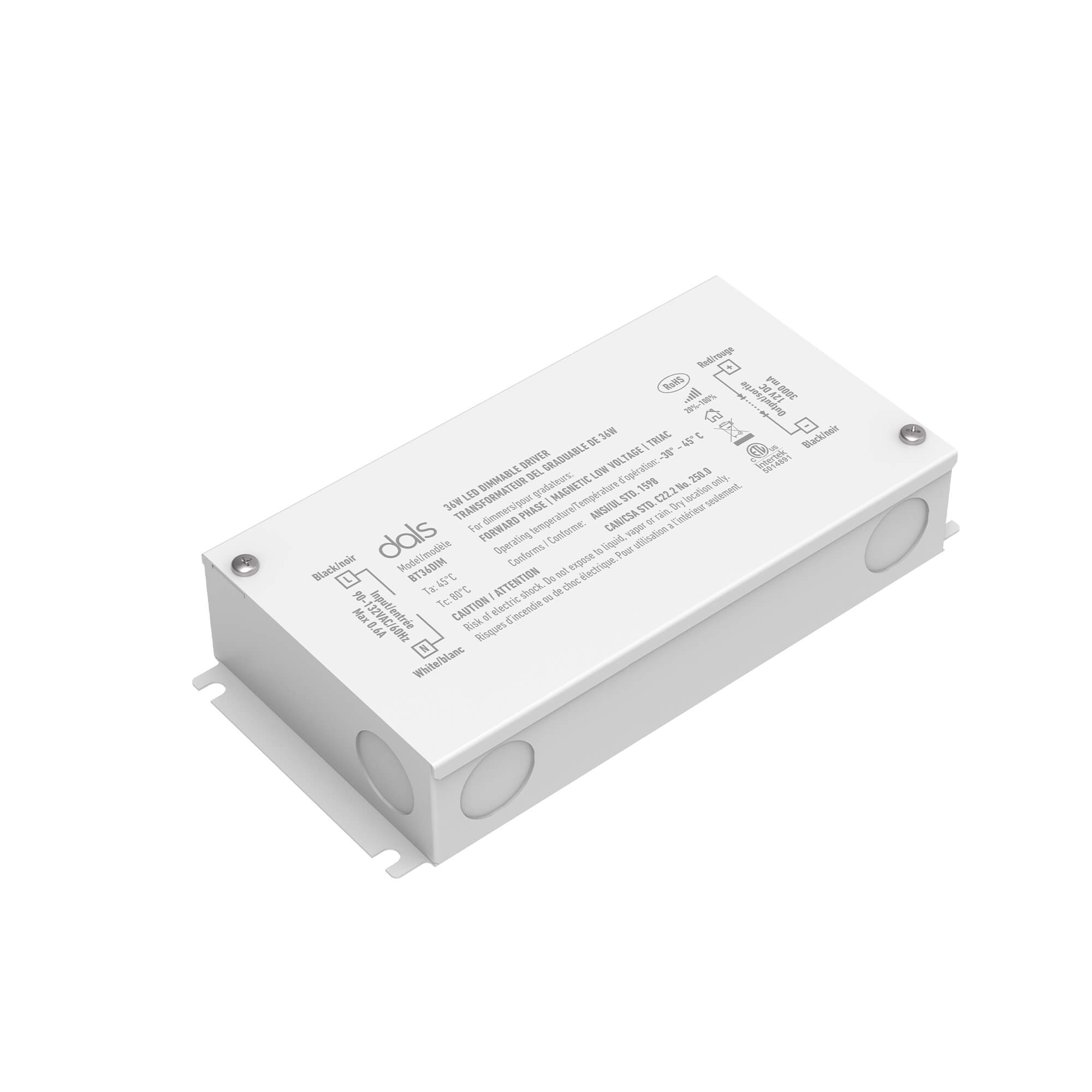

BT36DIM – 36W 12V DC Dimmable LED Hardwire driver

BT36DIM – 36W 12V DC Dimmable LED Hardwire driver

Model : BT36DIM Categories , ,

Dimming is made easy with our LED Dimmable Driver series. These products will allow you to find just the right amount of light based on the time of day your lighting fixtures are being used.

Compatible products:  SM-DIMSW  LINU12  SWIVLED12  |  SWIVLEDHP  4001  |  4001HP  |  4002  |  4002HP  |  4005FR  4005HP  |  4006  4006SQ  LEDRDP18

119.99$ USD

CERTIFICATIONS

  • Certifications indoor
  • Certifications dry
  • Certifications ic-rated
  • Certifications etl-certified

FEATURES

  • features dimmable
Driver wattage

36W

Standard Dimming

ELV, TRIAC

Dimensions

1.5" x 3.75" x 7.5"

  • Constant voltage mode power supply
  • AC-dimming supply (with TRIAC or ELV dimmer)
  • Protection: short circuit / Over voltage
  • Integrated junction box for hard wire installation
  • Fully isolated metal case – Cooling by air convection
  • 5 years warranty
  • ETL certification
  • Optimal dimming when used at 50% or more of total load
  • Input voltage: 100VAC-230VAC, 50/60Hz
  • Output voltage: 12V DC
  • Load Range: 50% to 100%
  • Operating temperature: -30°C to 45°C
