Dals SM-DIMSW, Leviton 6613P, Lutron CTCL-153P, Lutron DVCL-153P, Lutron DVSCCL-153P, Lutron MACL-153M

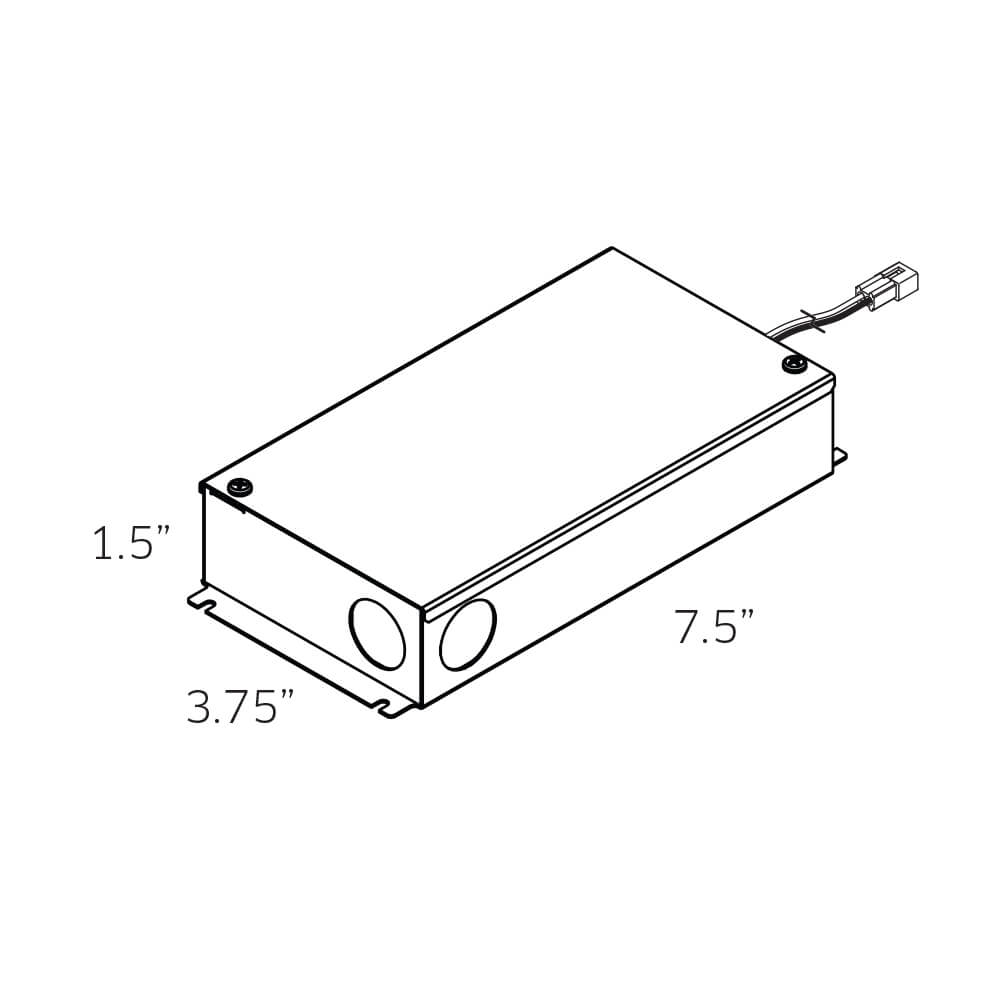

1.5" x 3.75" x 7.5"

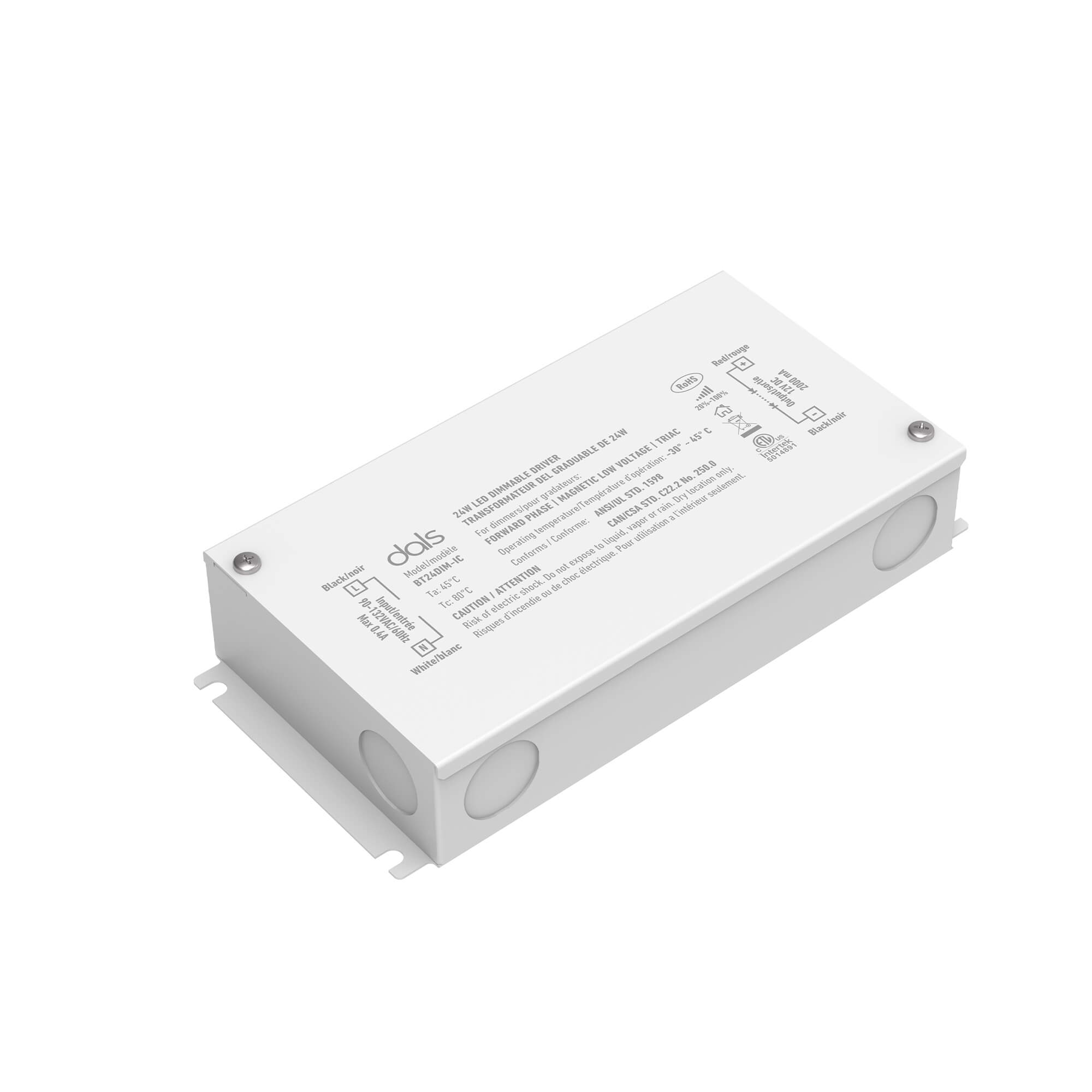

BT24DIM-IC – 24W 12V DC Dimmable LED Hardwire driver
Dimming is made easy with our LED Dimmable Driver series. These products will allow you to find just the right amount of light based on the time of day your lighting fixtures are being used.
- Constant voltage mode power supply
- AC-dimming supply (with TRIAC or ELV dimmer)
- Protection: short circuit / Over voltage
- Integrated junction box for hard wire installation
- Fully isolated metal case – Cooling by air convection
- 5 years warranty
- ETL certification
- Optimal dimming when used at 50% or more of total load
- Input voltage: 100VAC-230VAC, 50/60Hz
- Output voltage: 12V DC
- Load Range: 50% to 100%
- Operating temperature: -30°C to 45°C
